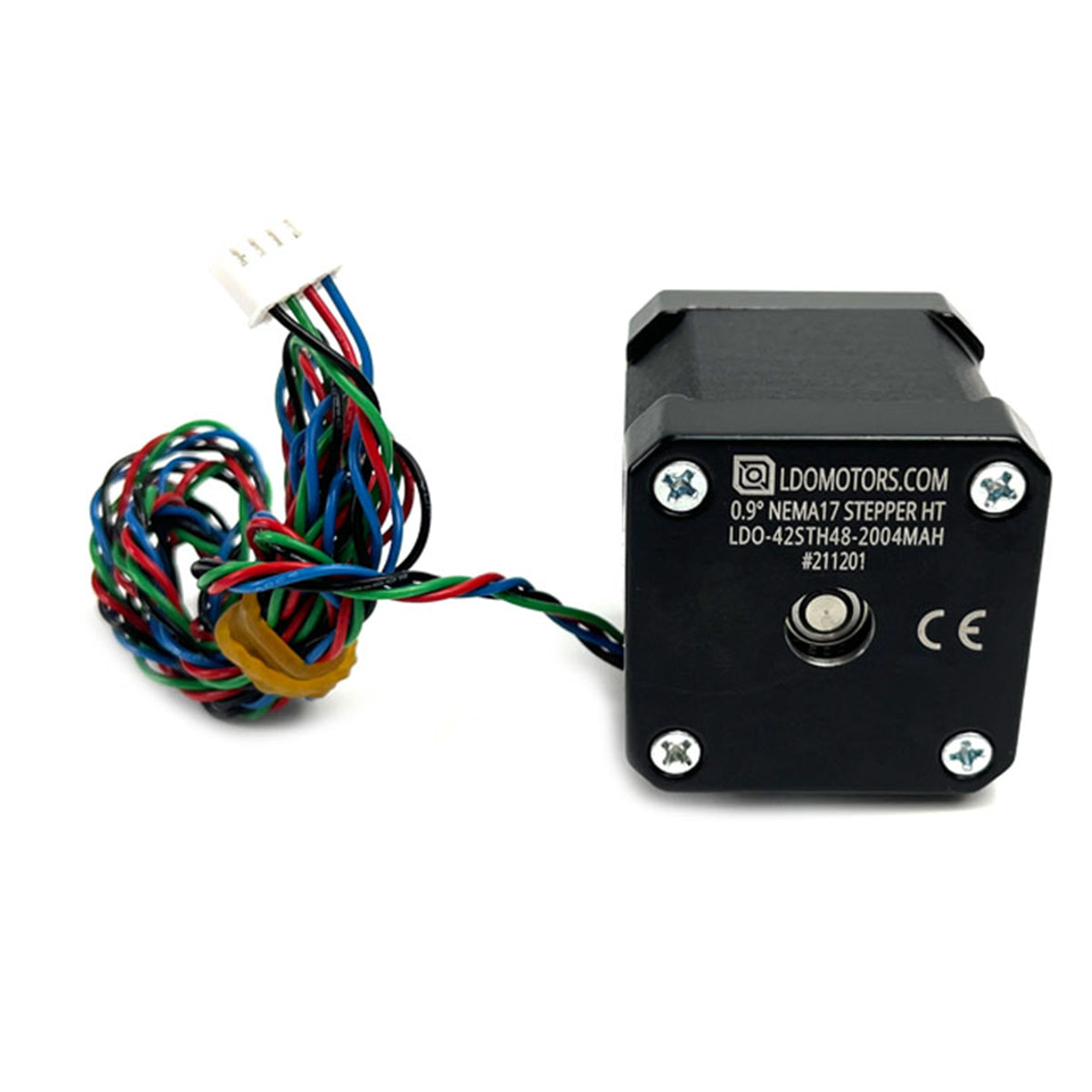

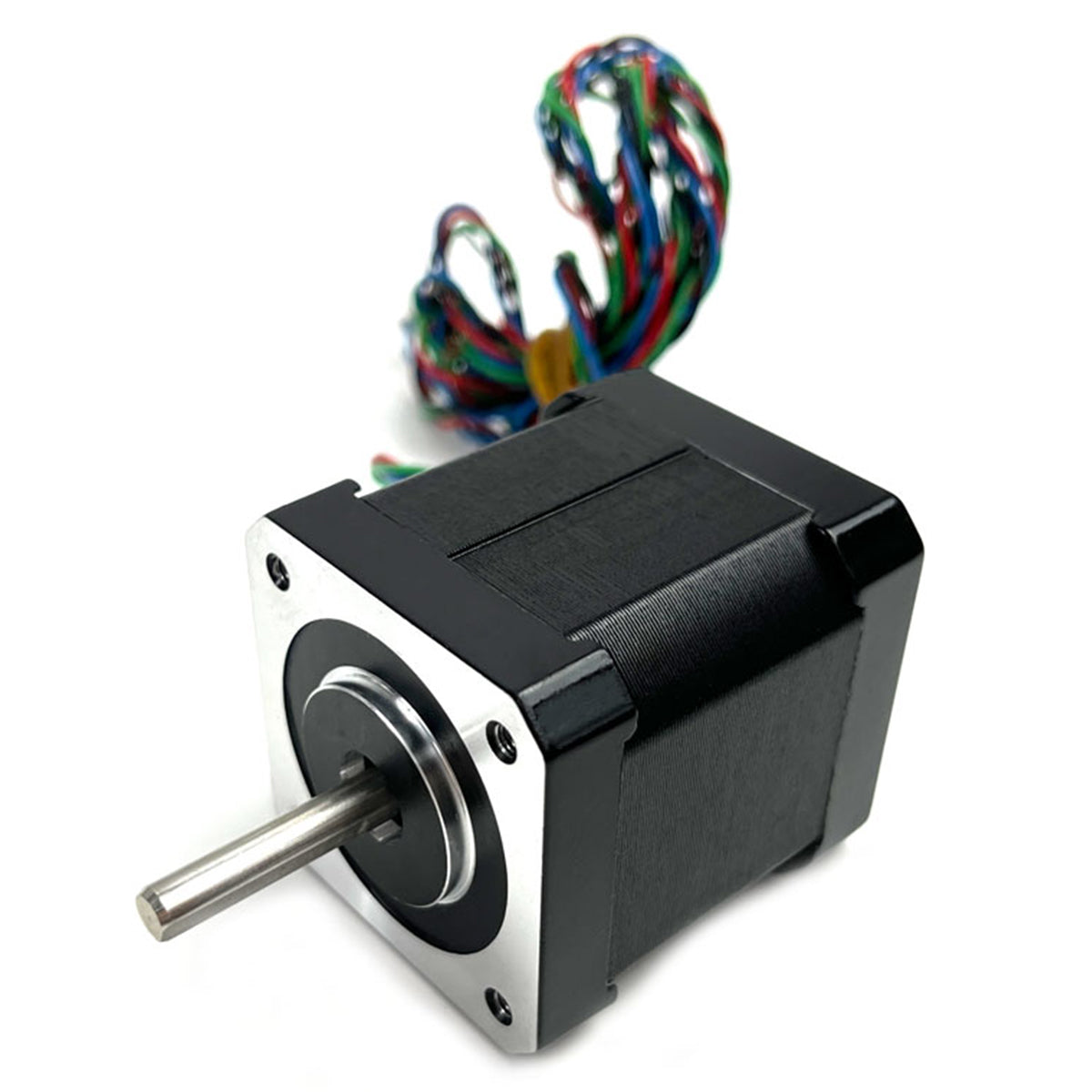

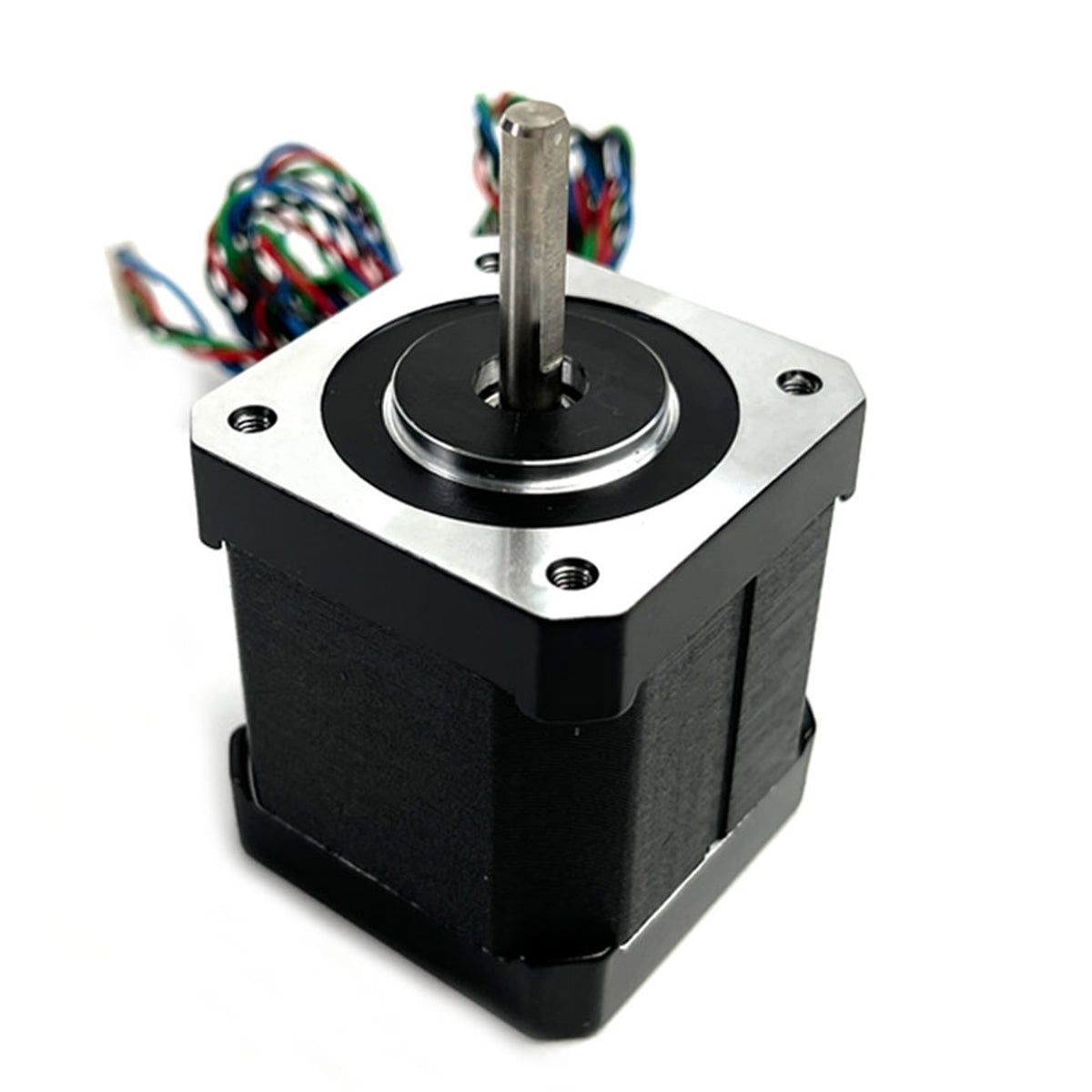

LDO-42STH48-2004MAH(VRN) 0.9° NEMA17 High Temp Stepper Motor for Voron A/B XY Motion

The LDO-42STH48-2004MAH(VRN) is a high-temperature 0.9° NEMA17 stepper motor designed for precision motion systems in Voron-style CoreXY 3D printers. It is commonly used as an A/B motor for Voron V1.8, Voron Trident, and Voron 2.4 XY motion systems, where smooth movement, thermal durability, and reliable torque matter.

With a 48mm motor body, 2.0A rated current, Class H 180°C insulation, 5mm output shaft, and long pre-wired cable, this motor is suitable for enclosed printers, high-temperature chambers, and performance-focused DIY 3D printer builds. Official LDO BOM pages list this model as an AB/XY motor in Voron kits, and merchant listings also position it for Voron A/B axis use.

Key Features

0.9° Step Angle for Smoother Motion

The 0.9° step angle provides 400 full steps per revolution, giving finer native resolution than standard 1.8° motors. This helps improve motion smoothness on CoreXY gantries, especially when paired with a quality microstepping driver.

48mm NEMA17 High-Torque Body

The 48mm body length gives this motor a solid torque profile for A/B motion systems. Based on the supplied drawing, the motor is rated at 4.0 kgf-cm holding torque with 2.0A per phase, making it suitable for belt-driven XY motion.

High-Temperature Class H 180°C Insulation

The drawing specifies Class H 180°C insulation, making this motor suitable for enclosed 3D printers where chamber temperature can be higher than open-frame machines.

Long High-Temp Cable with 4-Pin Connector

The motor comes with UL1332 24AWG FEP Teflon wire, rated to 200°C, and a 1500±20mm twisted cable. The connector is specified as JST XH2.54-4P or equivalent, with Molex Micro-Fit references shown on the drawing.

Recommended for:

Voron V1.8 A/B motor position

Voron Trident A/B motor position

Voron 2.4 XY / AB motion systems

CoreXY motion systems requiring a 0.9° NEMA17, 48mm body, 2.0A stepper motor

Enclosed or high-temperature 3D printer builds

DIY motion platforms using a 5mm shaft NEMA17 stepper

Not recommended for direct extruder use unless your design specifically requires this motor size, shaft format, current rating, and connector layout.

Confirm coil pairs with a multimeter before connecting to the stepper driver.

Match the connector pinout to your control board before powering the printer.

Set motor current according to your firmware, driver, and thermal requirements.

Do not force the pulley or coupler onto the shaft; align it with the flat section.

For Voron A/B use, two motors are typically required per printer.

1 × LDO-42STH48-2004MAH(VRN) 0.9° NEMA17 Stepper Motor
