The LDO Kirigami Bed Mount Kit is a modular bed mounting upgrade designed specifically for the Voron 0 series platform.

It improves maintenance access, cable management, and structural serviceability — all while keeping the bed lightweight and rigid.

This kit transforms the heated bed system from a fixed assembly into a service-friendly, modular design. As a result, disassembly, wiring replacement, and lighting upgrades become significantly easier.

Supported platforms:

- Voron 0.1

- Voron 0.2 (within the LDO official kit ecosystem)

Notes:

- Each version requires its own set of printed parts and wiring configuration.

- Supported controller boards (official reference):

  - SKR Mini E3

  - SKR Pico

Installation overview:

Step 1: Disconnect both ends of the cable chain.

Step 2: Check chain length and movement range  to ensure proper travel.

Step 3: Route the wiring in the following order:

Heater cable → Neopixel cable → Thermistor cable

Step 4: Install connectors and terminal housings.

Step 5: Secure the cable chain and complete bed connection.

Important notes:

- Thermistor wiring is non-polarized – orientation does not matter.

- Neopixel wiring:

  Red = 5V, White = DATA, Black = GND

- The cable chain must not extend above the top horizontal plane of the frame.

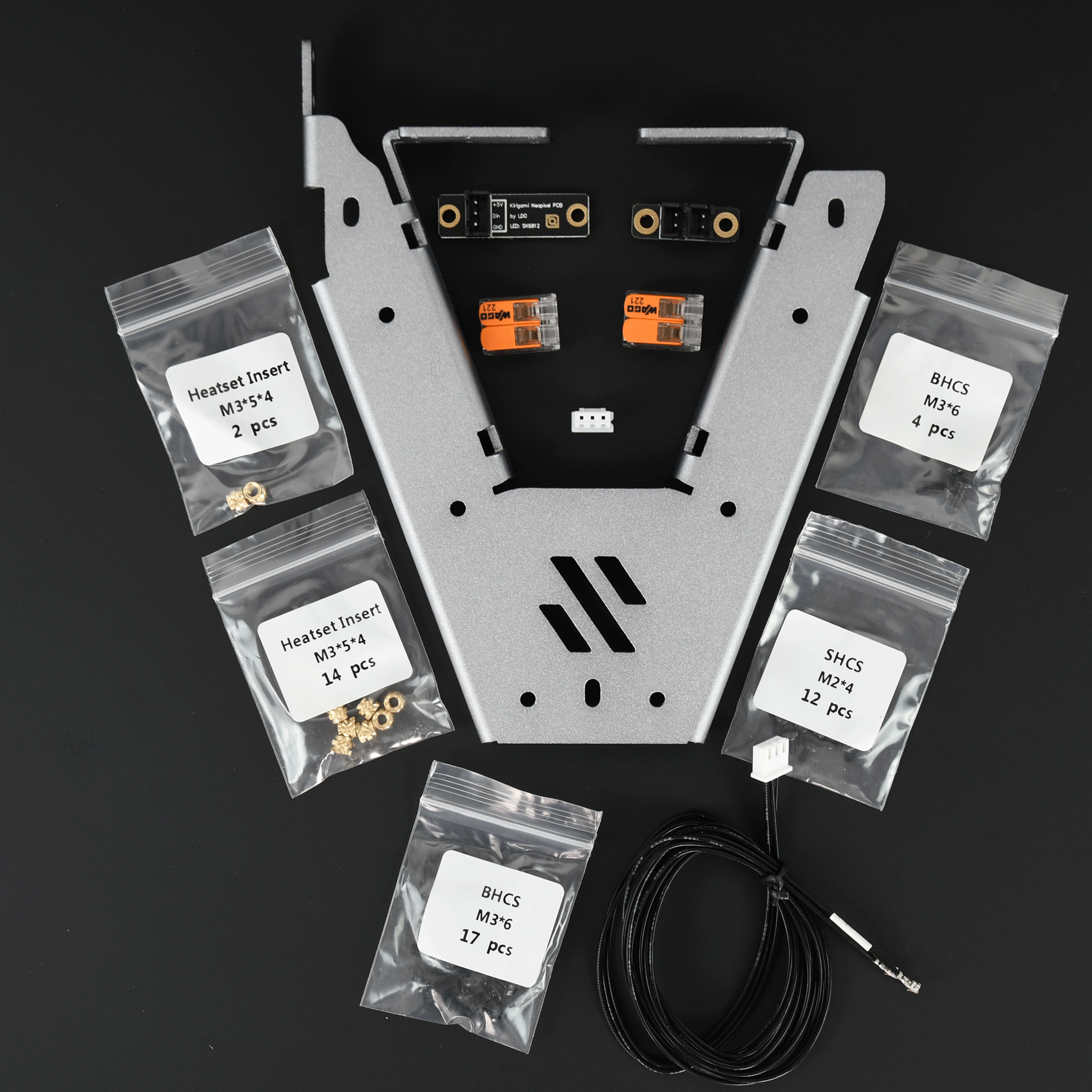

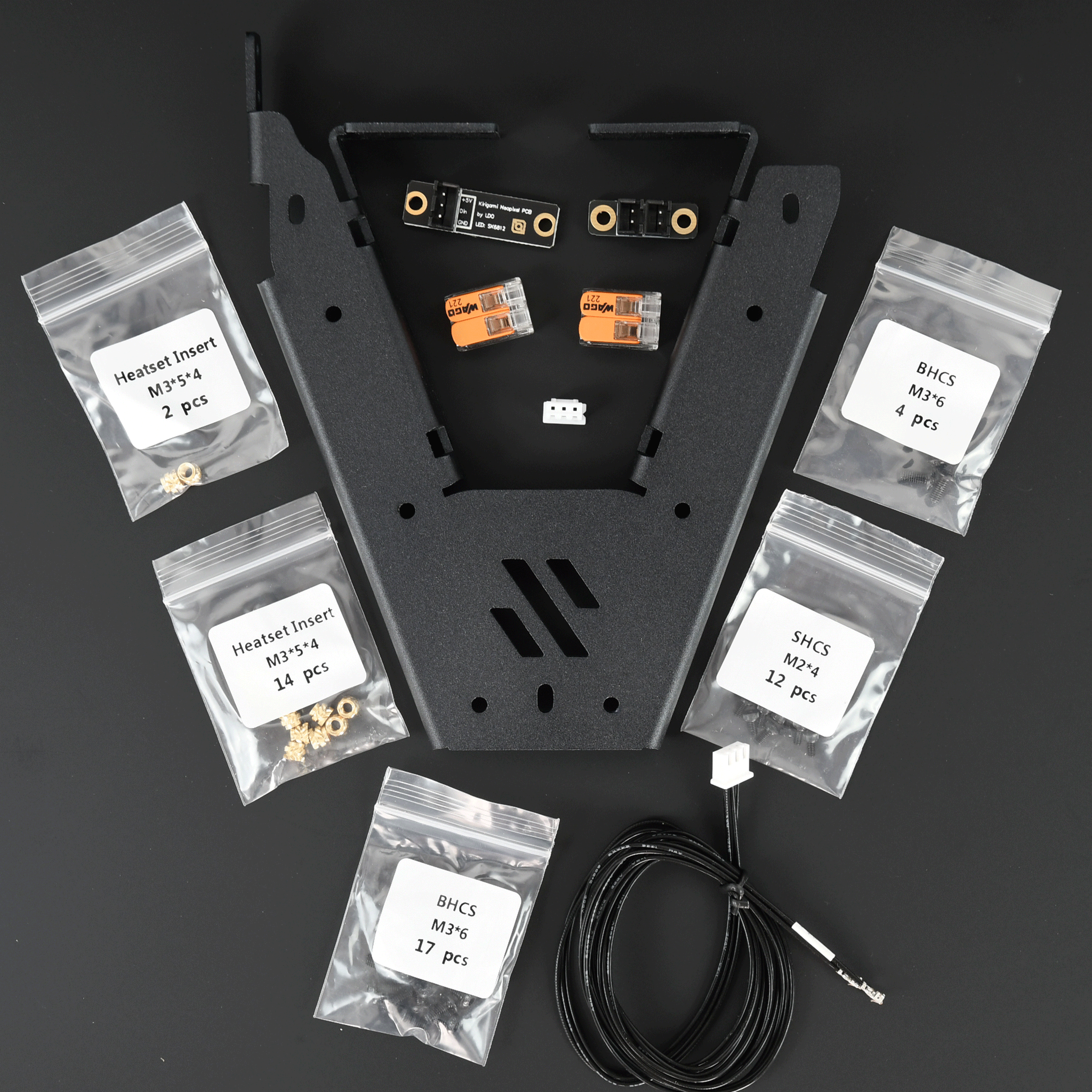

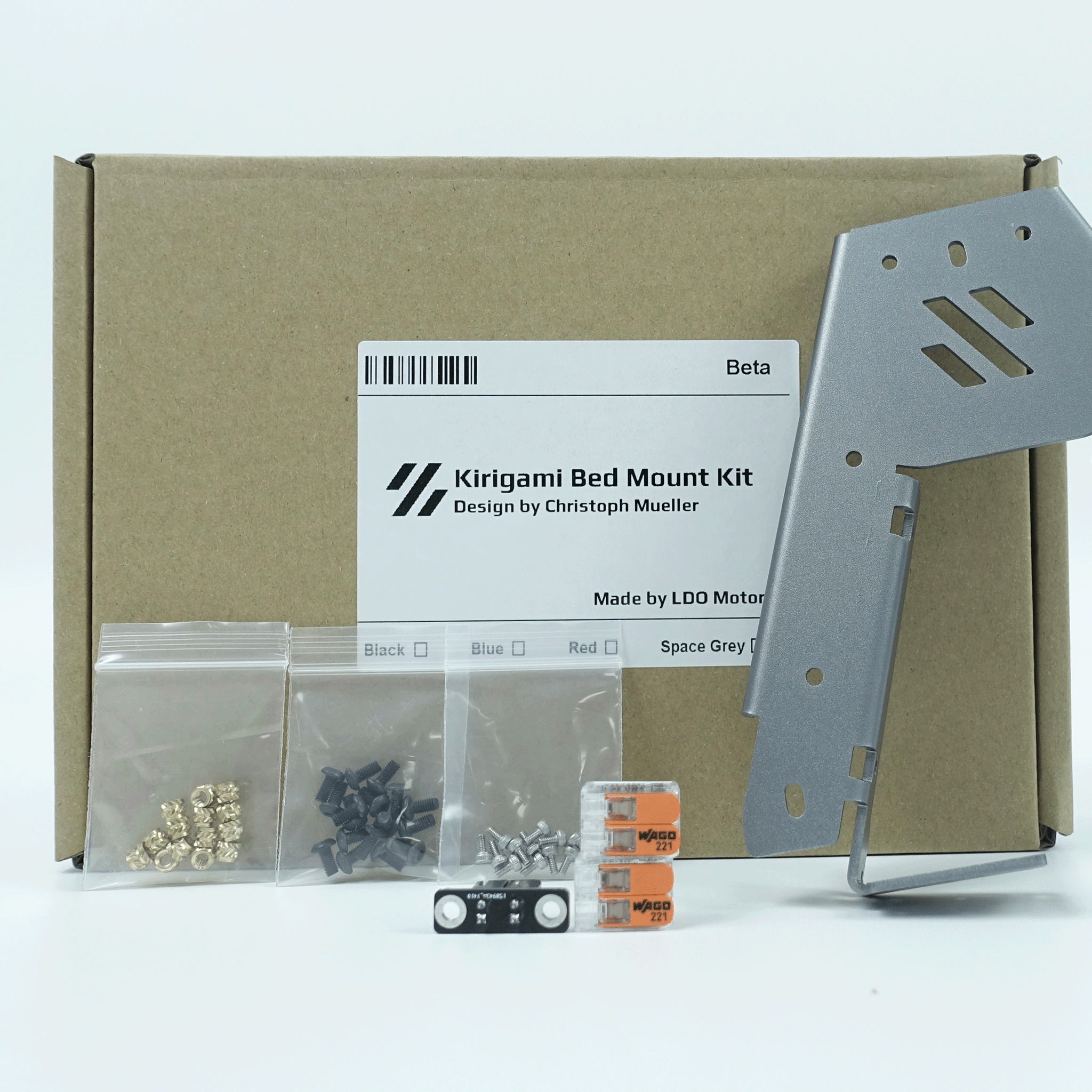

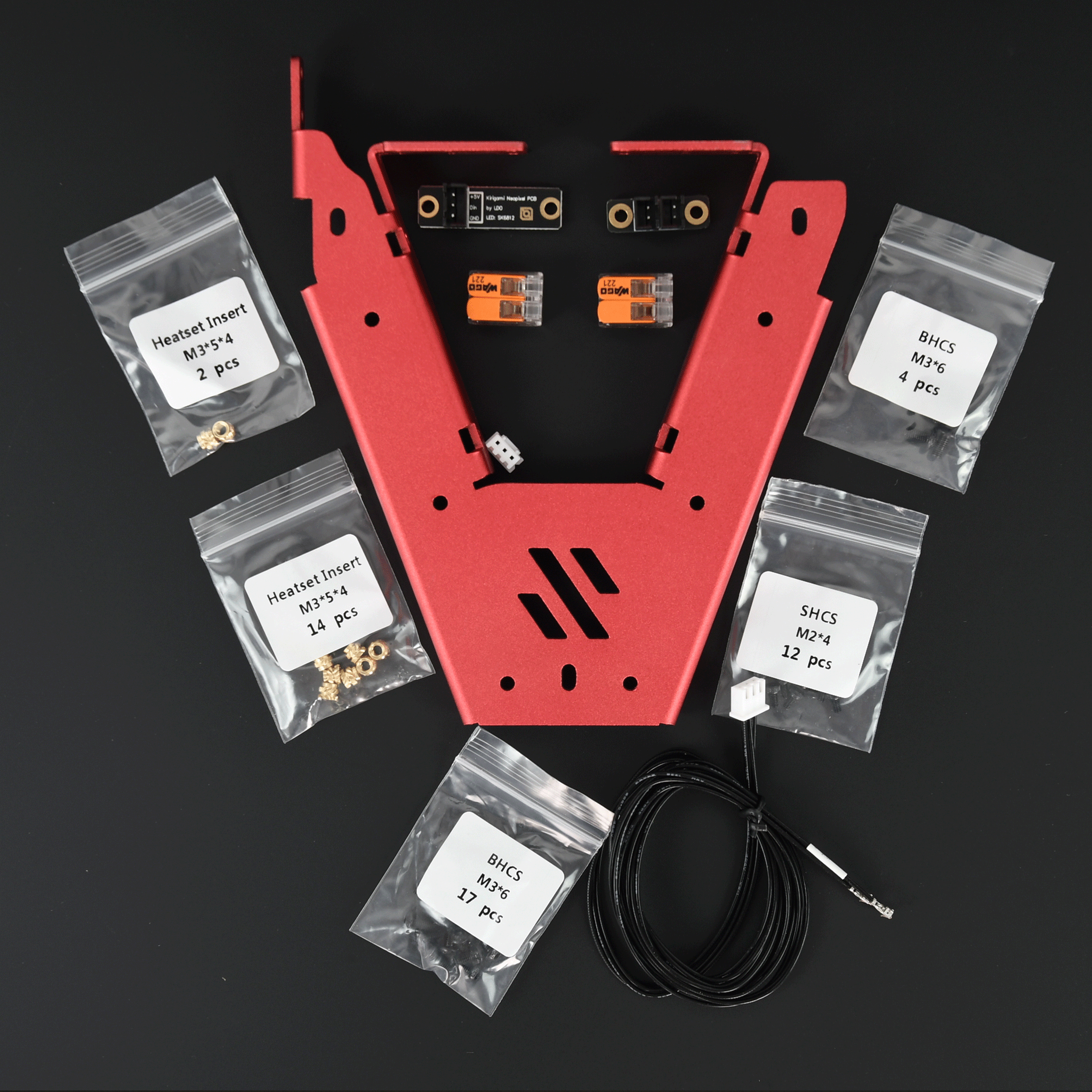

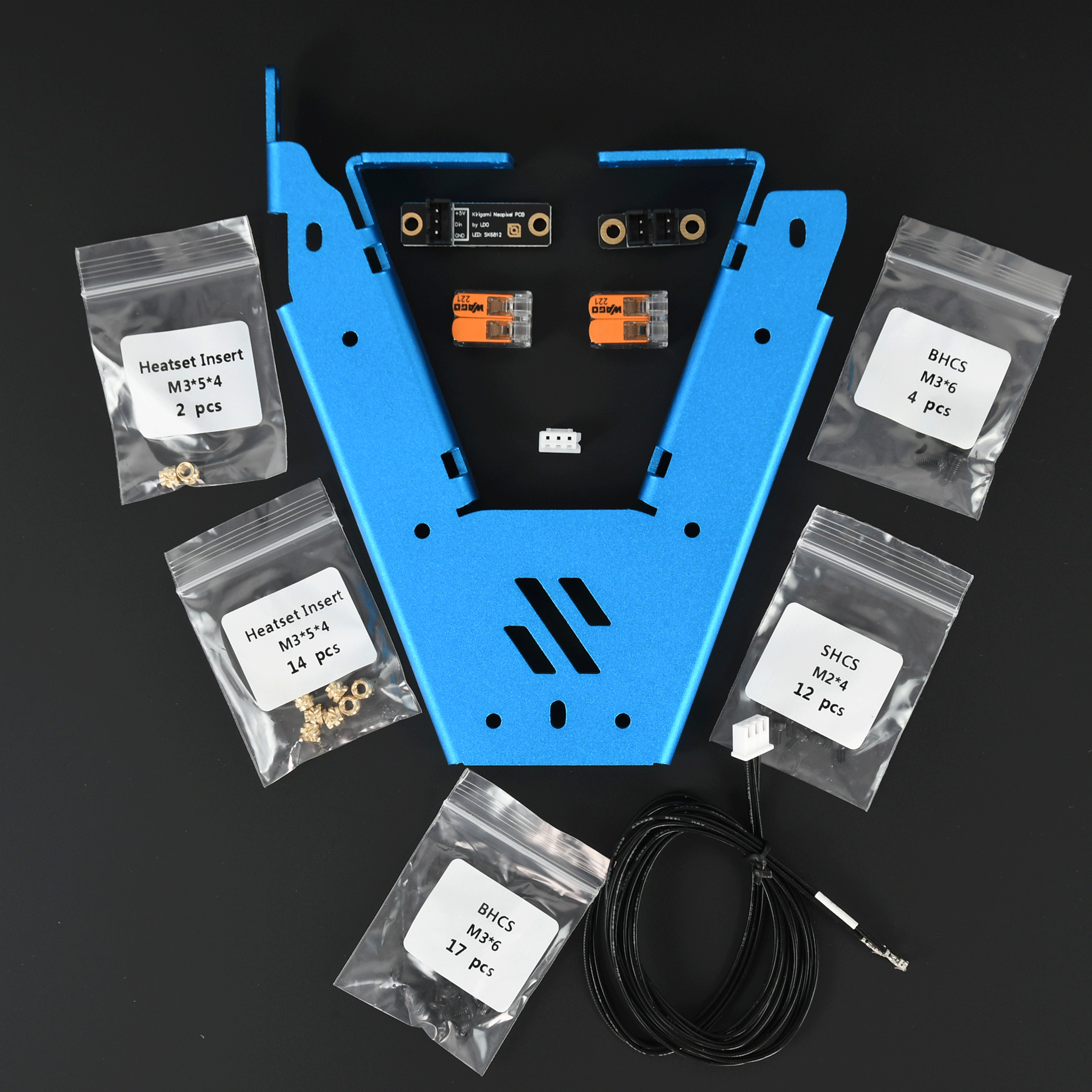

Included:

- Kirigami Bed Mount Kit frame components

- WAGO terminal blocks

- Neopixel front board

- Wiring extension support components

Official positioning:

LDO positions the Kirigami system as a maintenance and usability upgrade for the Voron 0 ecosystem, focusing on serviceability and wiring efficiency.

Community consensu:

Widely adopted for three reasons:

- Easy access for maintenance

- High rigidity

- Strong modular expandability

FAQ

Q1: What problem does this kit solve?

A: It makes bed removal, maintenance access, and wiring organization much easier.

Q2: What is the most difficult part of installation?

A: Getting the cable routing order right and adjusting the chain length correctly.

Q3: How do I wire the Neopixel?

A: Red = 5V, White = DATA, Black = GND.

Q4: Do I need any extra printed parts?

A: Yes, several supporting printed parts are required.

Q5: Which controllers are officially referenced?

A: SKR Mini E3 and SKR Pico.
