For many Voron builders, the toolhead wiring decision used to be simple: run traditional wiring, or move to CANBUS.

Now there is another practical option: a USB-based toolhead board like the LDO Nitehawk SB V2.

At first glance, USB and CANBUS toolhead boards seem to solve the same problem. Both reduce wiring. Both move electronics closer to the toolhead. Both can be configured as Klipper-controlled toolhead MCUs, but they use different communication methods between the toolhead board and the Raspberry Pi host. Both are commonly used in Voron 2.4, Trident, and Stealthburner-based builds.

But the real difference is not just the connector. The difference is in setup complexity, troubleshooting, expansion, and how much system knowledge the builder needs before the printer becomes reliable.

This guide compares Nitehawk SB V2 vs CANBUS toolhead boards from a practical Voron builder’s perspective.

What Is Nitehawk SB V2?

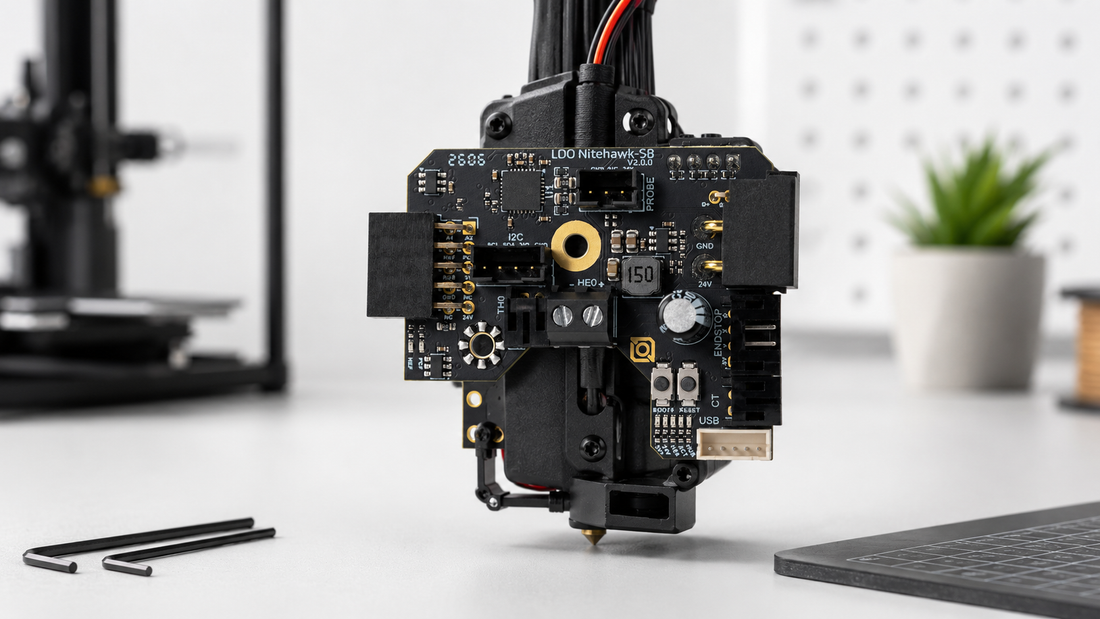

Nitehawk SB V2 is a USB toolhead board designed specifically for the Voron Stealthburner toolhead. It integrates an STM32G0B1 MCU, TMC2209 stepper driver, ADXL345 accelerometer, and USB hub into the toolhead PCB. LDO’s product page also notes that V2 keeps the original Nitehawk-SB form factor while redesigning much of the circuitry and layout.

Unlike CANBUS toolhead boards, Nitehawk communicates with the Raspberry Pi host over USB, not CAN. The main advantage is that the setup feels familiar to anyone who has already configured a Klipper printer over USB. LDO’s documentation describes the USB setup as simpler and more familiar than CAN for typical Klipper users.

In practical terms, Nitehawk SB V2 is aimed at builders who want a cleaner Stealthburner wiring setup without adding a full CAN network to the printer.

What Changed from Nitehawk SB V1 to V2?

Nitehawk SB V2 is not just a small revision. The important changes include:

These changes are listed in the Nitehawk SB V2 GitHub documentation and product descriptions.

The most important upgrade for many builders is the USB hub. It allows the toolhead to support a second USB device, such as a nozzle camera or an eddy-current probe, without routing another full USB cable back to the Raspberry Pi.

Nitehawk SB V2 vs CANBUS: The Core Difference

The main difference is communication architecture.

A CANBUS toolhead board requires a CAN network. That typically means setting up a CAN interface, discovering the CAN UUID, flashing firmware, configuring bus speed, and extra troubleshooting if the board doesn't show up correctly.

Nitehawk SB V2 uses USB instead. It still requires proper firmware and Klipper configuration, but the connection model is much closer to a standard USB MCU setup.

That difference matters most during first-time installation and troubleshooting.

Wiring Complexity

CANBUS Toolhead Boards

CANBUS boards are popular because they reduce toolhead wiring to just a few conductors. They are powerful and flexible, especially for advanced builds.

However, CANBUS adds a network layer. For experienced users, this is not a big deal. But for first-time Voron builders, it can be confusing—because the problem could be physical wiring, CAN interface setup, firmware, UUID, termination, or Klipper config.

Nitehawk SB V2

Nitehawk SB V2 is designed around simplified wiring. The original Nitehawk-SB documentation describes a setup that requires only 24V power and USB to the Raspberry Pi host, using a custom combined USB data/power cable that works in drag-chain or umbilical configurations.

For a Stealthburner build, that’s the main appeal: fewer separate toolhead wires, less breakout-cable complexity, and a more familiar USB-style Klipper connection.

Klipper Setup: USB Is Usually Easier

For many builders, the practical advantage of Nitehawk SB V2 isn't raw performance—it's setup simplicity.

With CANBUS, you need to understand the CAN interface and board discovery process. With USB, the toolhead MCU generally behaves more like other USB-connected Klipper boards.

That doesn’t mean USB is impossible to misconfigure. A Voron forum thread from 2025 shows a user experiencing Nitehawk connection and MCU errors after configuration changes, with discussion focusing on firmware matching and Klipper logs.

So here’s the correct conclusion:

Nitehawk SB V2 reduces CAN-specific setup complexity, but it doesn’t eliminate the need for correct firmware, Klipper configuration, and clean power/data wiring.

That distinction is important. USB is easier to approach, but it's not magically problem-free.

Expansion: Why the USB Hub Matters

The USB hub is one of the most important reasons to choose Nitehawk SB V2.

Modern Voron toolheads are increasingly using extra devices:

• Beacon probe
• Cartographer probe
• Nozzle camera
• USB accelerometer
• Other small USB peripherals

Community discussion about USB vs CANBUS often circle back to this point: USB can be useful when the toolhead can act as a hub for additional USB devices like a Beacon probe or nozzle camera.

Nitehawk SB V2 directly addresses this use case with an onboard USB hub and a secondary USB port.

For builders planning a more advanced toolhead setup, this can be more valuable than the basic “USB vs CAN” comparison.

Input Shaping

Nitehawk SB V2 includes an onboard ADXL345 accelerometer, which allows input shaper calibration without temporarily mounting a separate accelerometer to the toolhead. The GitHub documentation confirms onboard ADXL345 support for input shaping.

For Voron builders, this is a real quality-of-life improvement.

It helps with:

• Cleaner resonance measurement
• Faster tuning after toolhead changes
• Easier recalibration after belt, gantry, or hotend modifications
• Less temporary wiring during tuning

This is especially useful if you frequently modify your toolhead, swap extruders, or experiment with high-speed print settings.

Fan Monitoring and Diagnostics

Keeping fan connections local to the toolhead also makes diagnostics and maintenance easier. The GitHub documentation lists tachometer support for fan speed detection.

This matters because fan failures are not always obvious during printing.

A failing hotend fan can cause heat creep. A part cooling fan issue can lead to poor bridging, weak overhangs, inconsistent cooling, or layer quality problems.

Tachometer feedback gives the printer more diagnostic visibility. For a performance-focused Voron build, that is a practical reliability improvement.

When CANBUS Still Makes Sense

Nitehawk SB V2 is not automatically the right choice for every build.

CANBUS still makes sense when:

• You're already comfortable with CAN setup
• Your printer already has a stable CAN network
• You're using a board ecosystem designed around CAN
• You want maximum flexibility across non-Stealthburner toolheads
• You prefer a standardized CAN-based architecture across multiple printers

CANBUS is not “bad.” It is just more involved. For advanced builders, CANBUS is often perfectly reliable once configured correctly. For first-time users, USB may simply reduce the number of things that can go wrong during initial setup.

When Nitehawk SB V2 Is the Better Choice

Nitehawk SB V2 is usually the better fit when:

• You are building around Voron Stealthburner
• You want simpler wiring
• You do not want to configure a CAN network
• You want an onboard ADXL345 for input shaping
• You want a secondary USB port for a probe or nozzle camera
• You prefer a toolhead board designed specifically for the Stealthburner form factor
• You are upgrading from traditional Stealthburner wiring

For many LDO Voron builders, this is the key advantage: Nitehawk SB V2 keeps the upgrade path practical without making the electronics stack feel more complicated than the mechanical build.

Practical Installation Considerations

Before installing Nitehawk SB V2, keep these points in mind:

1. Confirm Your Toolhead

Nitehawk SB V2 is designed for Voron Stealthburner. If you are using a different toolhead, double-check fitment before buying.

2. Check Connector Type

V2 changes several ports to JST-PH2.0. If you are replacing an older board or reusing existing wiring, do not assume every connector is the same as V1.

3. Plan Your USB Peripheral Layout

If you plan to run Beacon, Cartographer, or a nozzle camera, plan the routing before final assembly. The secondary USB port is useful, but cable strain relief still matters.

4. Update Firmware Consistently

When Klipper gets updated, make sure your MCU firmware and config remain consistent. Connection errors are often caused by mismatched firmware, incorrect serial paths, or configuration drift, not necessarily bad hardware.

5. Think About Serviceability

One advantage of toolhead PCBs is cleaner service access. Keep the front toolhead assembly removable and avoid routing cables in a way that makes hotend or fan maintenance painful.

Nitehawk SB V2 vs CANBUS: Quick Comparison

FAQ

Is Nitehawk SB V2 a CANBUS board?

No. Nitehawk SB V2 uses USB communication with the Raspberry Pi host instead of CANBUS.

Does Nitehawk SB V2 work with Voron Stealthburner?

Yes. It is specifically designed for the Voron Stealthburner toolhead.

What MCU does Nitehawk SB V2 use?

Nitehawk SB V2 uses an STM32G0B1 MCU. This is one of the major changes from the original Nitehawk-SB, which used an RP2040.

Does Nitehawk SB V2 have an accelerometer?

Yes. It includes an onboard ADXL345 accelerometer for input shaping.

Can I connect Beacon or a nozzle camera to Nitehawk SB V2?

Nitehawk SB V2 includes a USB hub and secondary USB port, which can support an additional USB device such as a nozzle camera or eddy-current probe, depending on your specific setup and wiring.

Is USB more reliable than CANBUS?

Not automatically. USB is usually easier to configure for many Klipper users, while CANBUS can be very reliable once correctly installed. The better choice depends on your build experience, wiring plan, and troubleshooting comfort level.

Should I upgrade from Nitehawk SB V1 to V2?

If you need the USB hub, improved ESD performance, keyed connectors, I2C port, or the revised STM32G0B1-based design, V2 is a meaningful upgrade. If your V1 setup is already stable and you do not need expansion, upgrading is optional.

Conclusion

Nitehawk SB V2 is best understood as a practical Stealthburner wiring upgrade, not just another toolhead PCB.

Compared with CANBUS boards, its main advantage is not theoretical performance. It’s reduced setup friction: USB communication, integrated ADXL345, onboard USB hub, cleaner wiring, and a form factor designed specifically for Voron Stealthburner.

CANBUS remains a strong option for advanced builders who already understand CAN networks or want a CAN-based architecture across multiple printers. But for many Voron users, especially those building or upgrading a Stealthburner toolhead, Nitehawk SB V2 is the simpler and more approachable choice.

For builders who want cleaner wiring, easier input shaping, and room for a USB probe or nozzle camera, Nitehawk SB V2 is one of the most practical toolhead board upgrades available for a modern Voron Stealthburner setup.
