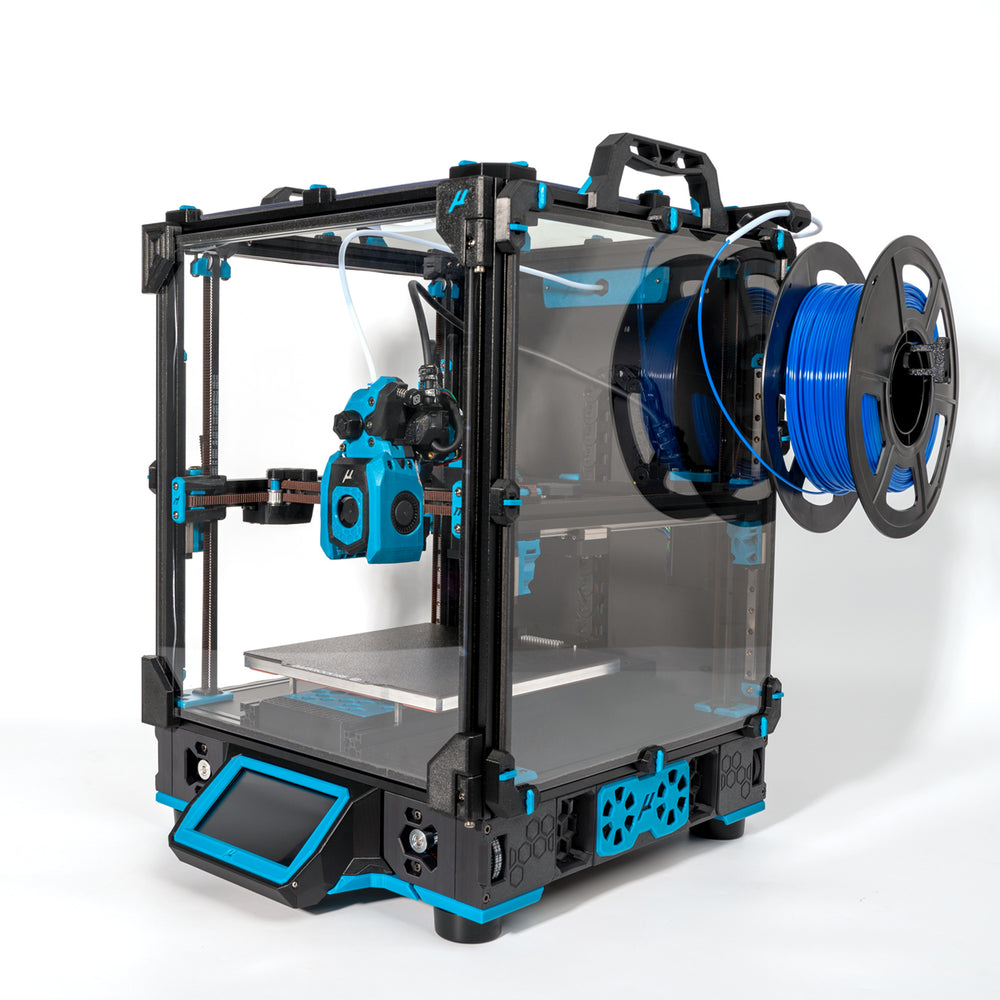

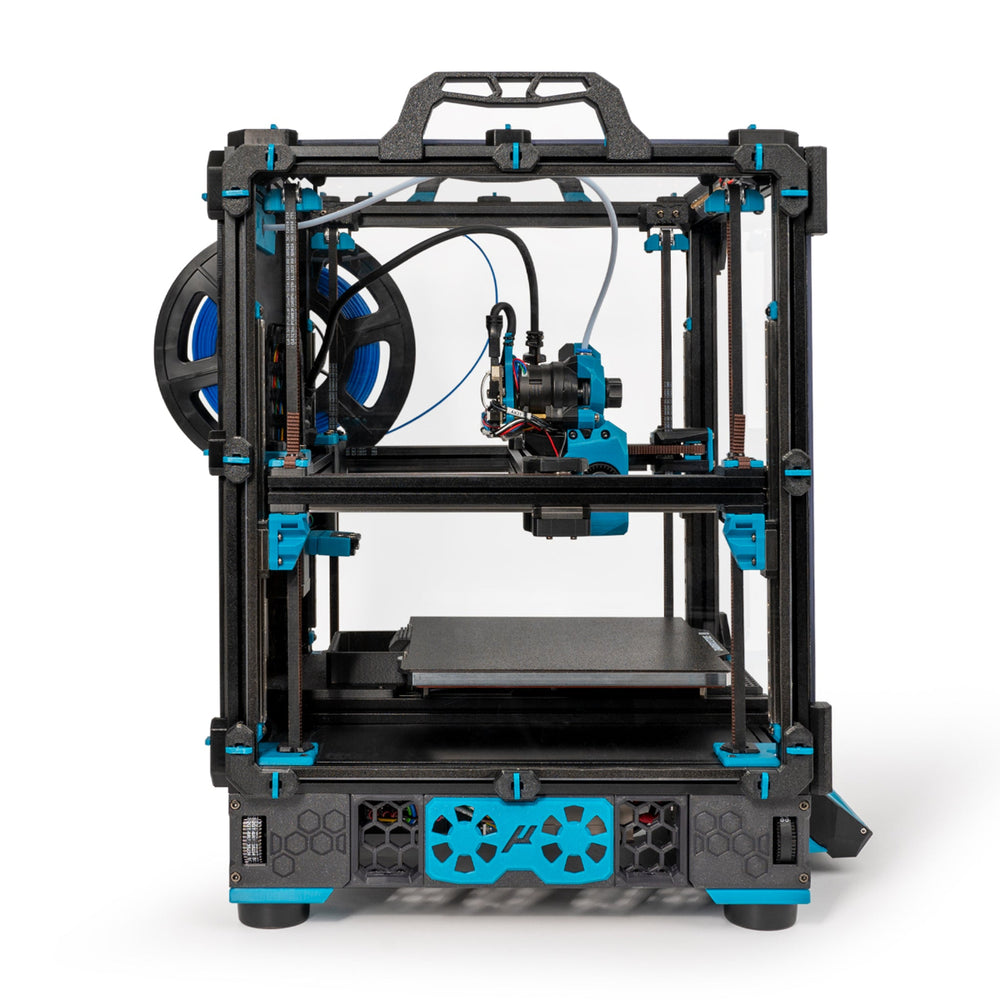

LDO Micron Plus R1 - CoreXY 3D Printer Kit

The LDO kit version bundles key hardware (mainboard + toolhead board, pre-made wiring harnesses, heated bed, power supply, etc.) into a ready-to-assemble package. You spend less time sourcing parts and rework, and more time on building and tuning.

Ideal for high-speed, high-quality prints, large engineering parts, reliable enclosed printing with ABS/ASA, and long-term compatibility within the open-source ecosystem—including toolheads, probes, lighting, filtration, and more.

LDO Upgrades &Improvements

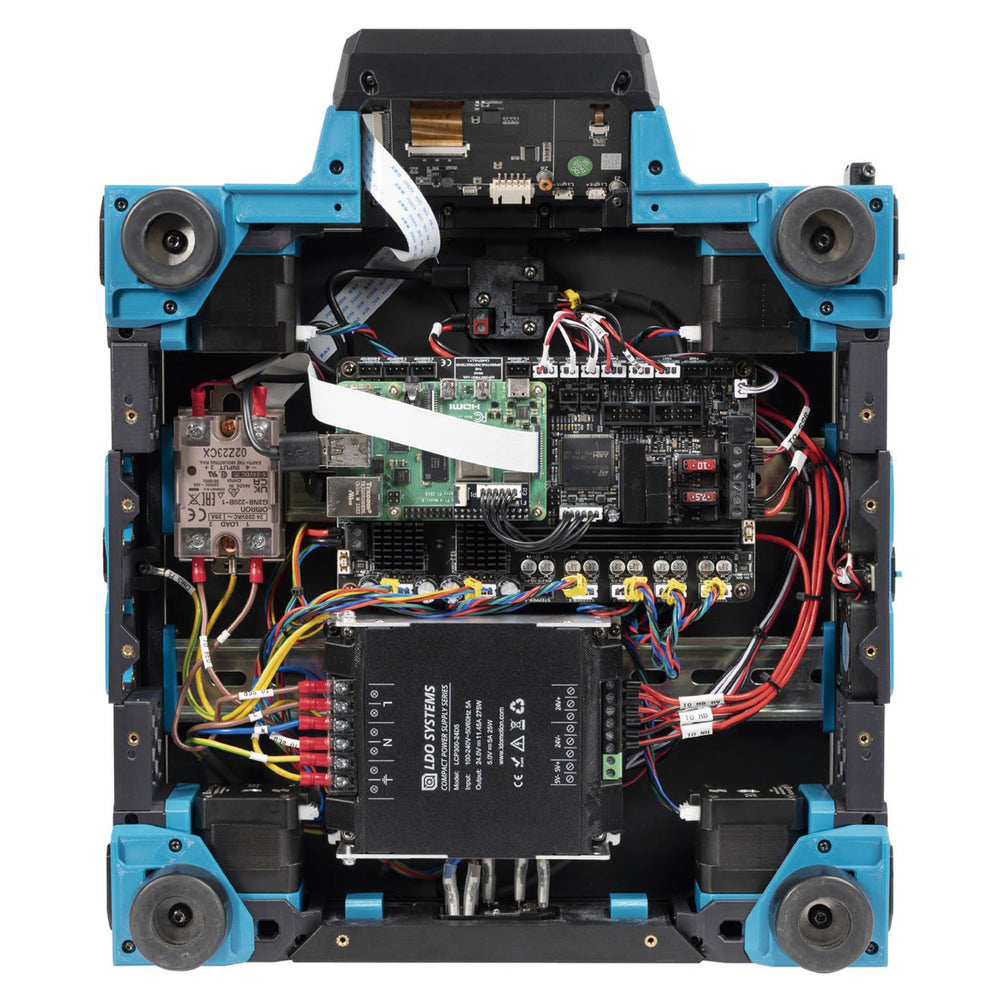

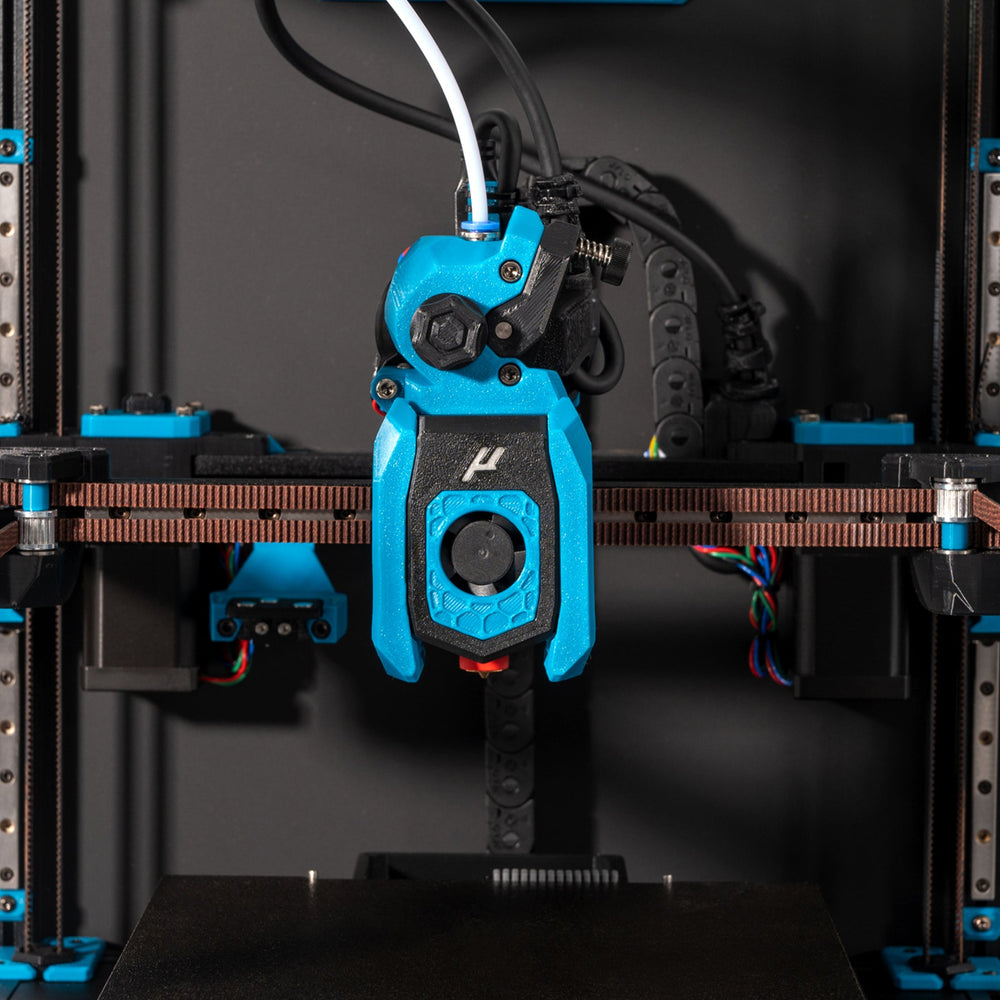

01. Integrated electronics (Leviathan V1.3 + Nitehawk-36)

The kit includes both boards with matching pre-made harnesses, resulting in cleaner wiring, more straightforward bring-up, and easier service or replacement later.

02. Dual-shear motor mounts + long-shaft motors (LDO-35STH52-2004AH(S35))

XY motors are mounted in a dual-shear configuration for higher rigidity and reduced deflection. Long-shaft motors keep compatibility and leave room for future AWD-style upgrades.

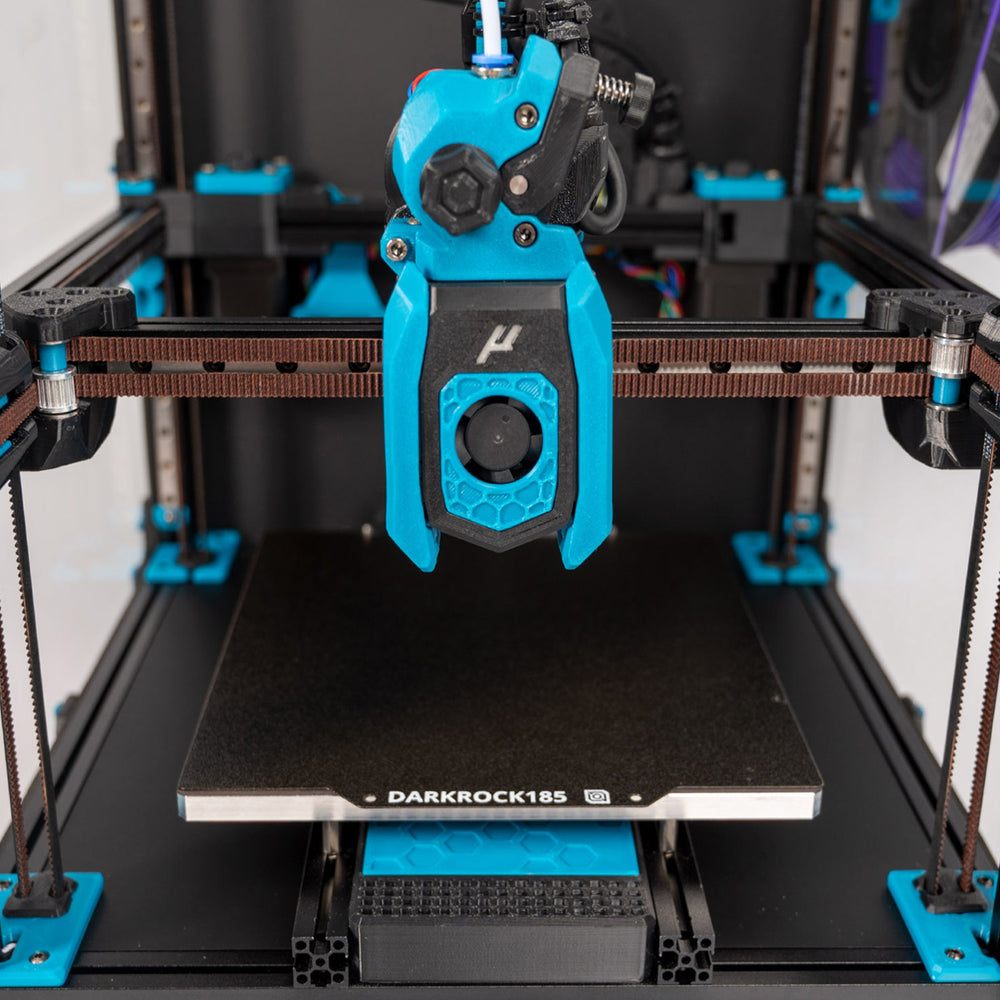

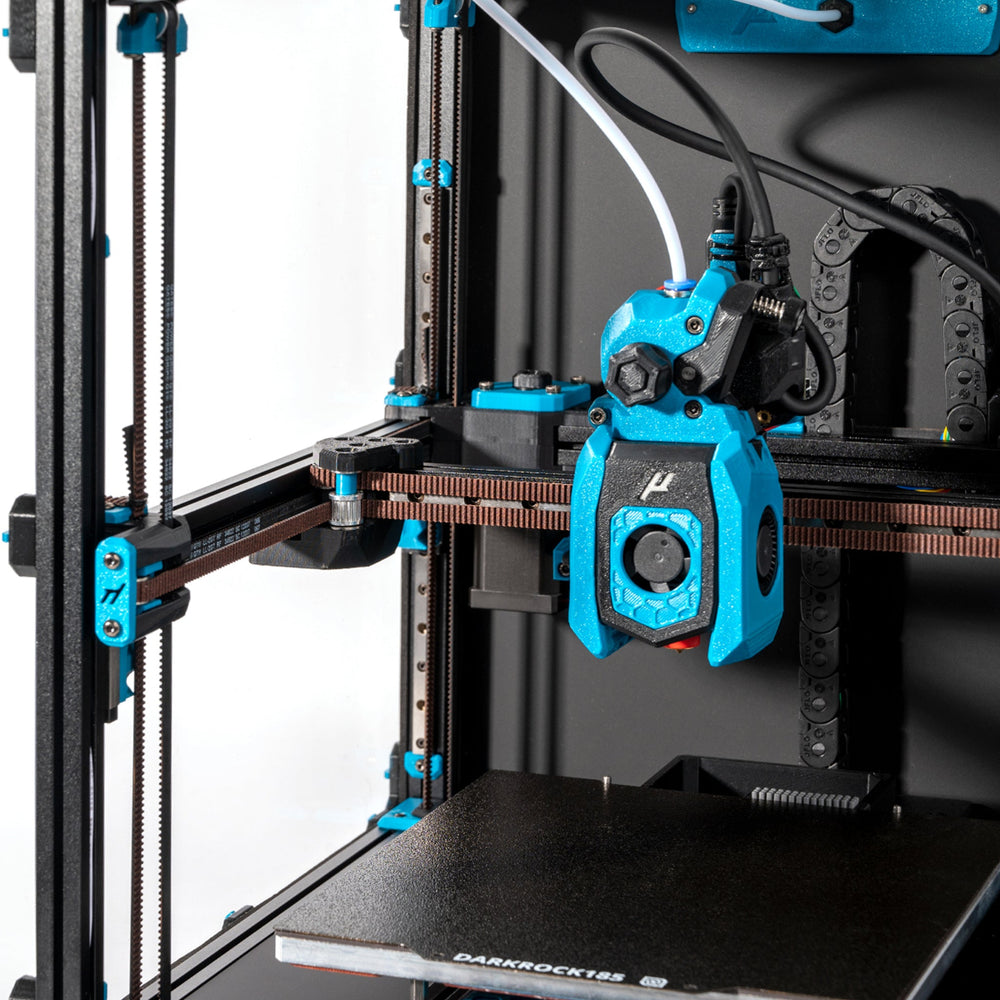

03. Live Idlers + dowel-pinned ABZ pulleys

Live Idlers improve belt tracking, and dowel pins ensure accurate ABZ pulley positioning. The belt path is more precise and tension is more uniform, reducing noise and wear caused by assembly tolerances.

04. Under-bed function PCB (bed fans & filter)

A dedicated under-bed PCB consolidates wiring for bed fans and filter-related peripherals. Cable routing is cleaner, and future fan/filter add-ons are easier.

05. 300 W AC bed heating solution

Uses a 180 x 180 mm, 300 W AC silicone heater for faster heat-up and more stable high-temperature printing.

06. LDO Compact PSU (275 W 24 V + 25 W 5 V)

Compact dual-voltage power solution that saves space and provides convenient 5 V power for loads like an SBC or screen.

Specs Options & What's Included

A. Specs

Build Volumes: 180 x 180 x 165 mm

Recommended User Level: Builders with basic DIY or assembly experience, who are comfortable following detailed guides for calibration and tuning.

B. Key Components

• 515 aluminum extrusion frame (pre-cut lengths: 350/310/280/265/250/180, etc.)
• Linear rails: SLR7H x 6 + SLR9H x 1 (220 mm length)
• GT2 belt drive system with 16T/64T pulleys, idlers, and 6 mm belts
• Electronics (Leviathan V1.3 mainboard + Nitehawk-36 toolhead board + USB adapter board)
• Power and mains components (LDO LCP300-24 PSU, AC inlet, SSR, etc.)
• Heated bed system (186 x 186 cast aluminum plate + 185 x 185 magnetic spring steel sheet + 180 x 180 300 W AC heater)
• Cooling & lighting (2510/4010/5015 fans, etc.) + COB LED strip

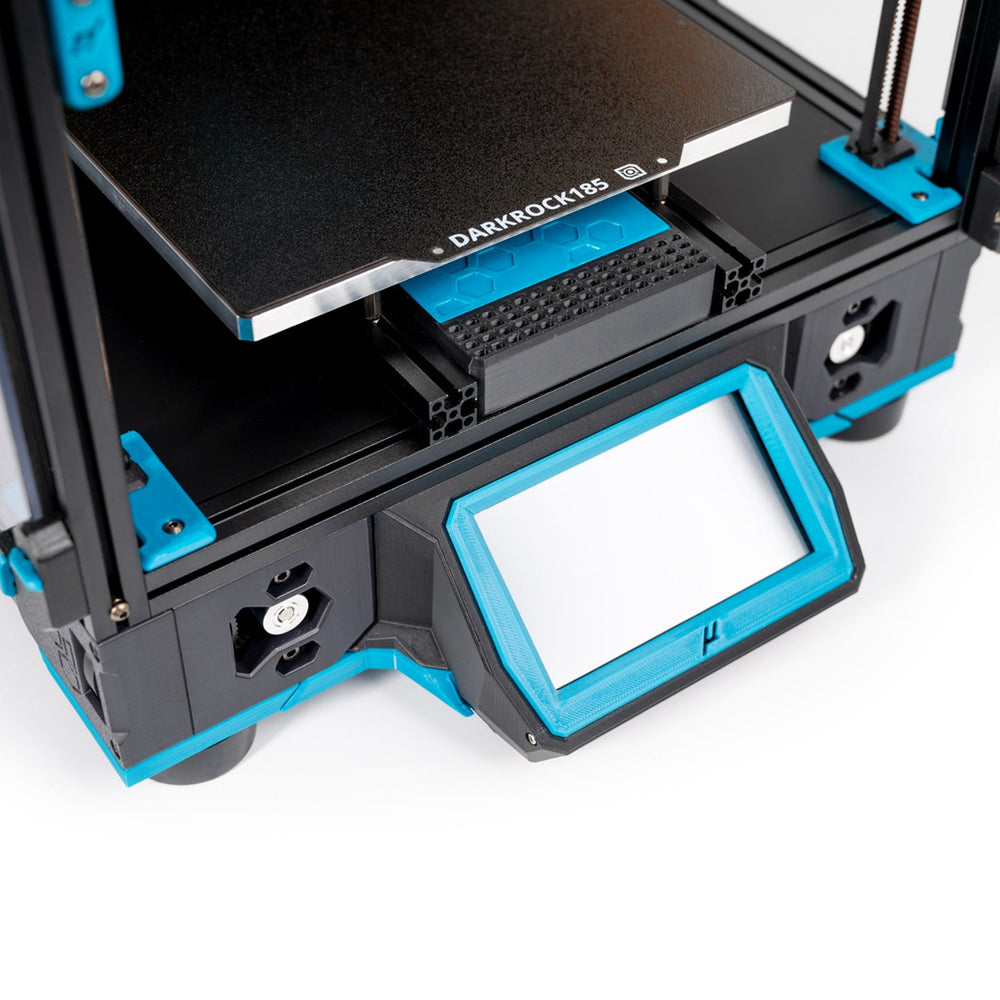

• Display & host (4.3-inch touch screen + Raspberry Pi 4B;)

C. Full BOM

LDO Official BOM: [LDO Micron Plus Kit BOM]

Note: Kit contents may vary slightly by production batch or sales channel. Please verify against the checklist included with your shipment.

Printed Parts Options (Self-print / Pre-printed Service)

Choose the method that best fits your tools, time, and preferences.

Option A: Print It Yourself (Recommended for Printer Owners)

• More Reliability: Follow our detailed print settings profile to achieve successful, warp-free parts with fewer test iterations.
• Guided Consistent:  Use the comprehensive Printed Parts Guide to avoid missing components and assembly rework.
• Get Started: [Micron.STLs]

Option B: Order Pre-printed Parts  (For No Printer / Time-Sensitive Builds)

• Build Immediately: No 3D printer? No problem. Start your project as soon as the kit arrives.
• Simple Add-On: Select the “Pre-Printed Parts Service” during checkout. Parts will be carefully packed and shipped together with your main kit.
• Color Options: Standard two-tone (Primary + Secondary). 【For custom color requests】, please contact support or add a note to your order.
• Lead time: Made-to-order; typically ships ~4 business days later (adjust per production capacity).

Reviews & Build Experience

See what third-party reviews and fellow builder say. Their firsthand insights on build difficulty, tuning process, and print quality can help you make an informed decision.

Build Notes

Our detailed Build Notes supplement the official manual, integrating key LDO-specific instructions and community wisdom to ensure a smooth and efficient build.

• Follow with Confidence: The Notes clearly highlight which official steps to skip, modify, or pay extra attention to, eliminating guesswork.
• Avoid Common Pitfalls:  Critical reminders and kit-specific differences are consolidated in one place, helping you maintain a steady build rhythm and avoid rework.
• Simplified Workflow: Particularly for beginners, the electronics and wiring sequences are clarified for a more straightforward and less frustrating experience.

Entry: [Micron 180.Build Notes]

First Print Test

Complete your build with confidence. Run this initial print sequence to validate core machine functions: extrusion, temperature control, motion, and dimensional accuracy.

What You Will Need

Slicer:  [OrcaSlicer]

Recommended test models: [Test_Prints]

Note:  Voron_Design_Cube_v7.stl is the most widely used.

One-stop Resource Center

Resources List：

• LDO Official BOM: [LDO Micron Plus Kit BOM]
• Printed parts entry: [Micron.STLs]
• Wiring Guide: [Micron 180.Wiring Guide]
• Build Notes: [Micron 180.Build Notes]
• First print model / slicer: [Test_Prints]; [OrcaSlicer]
