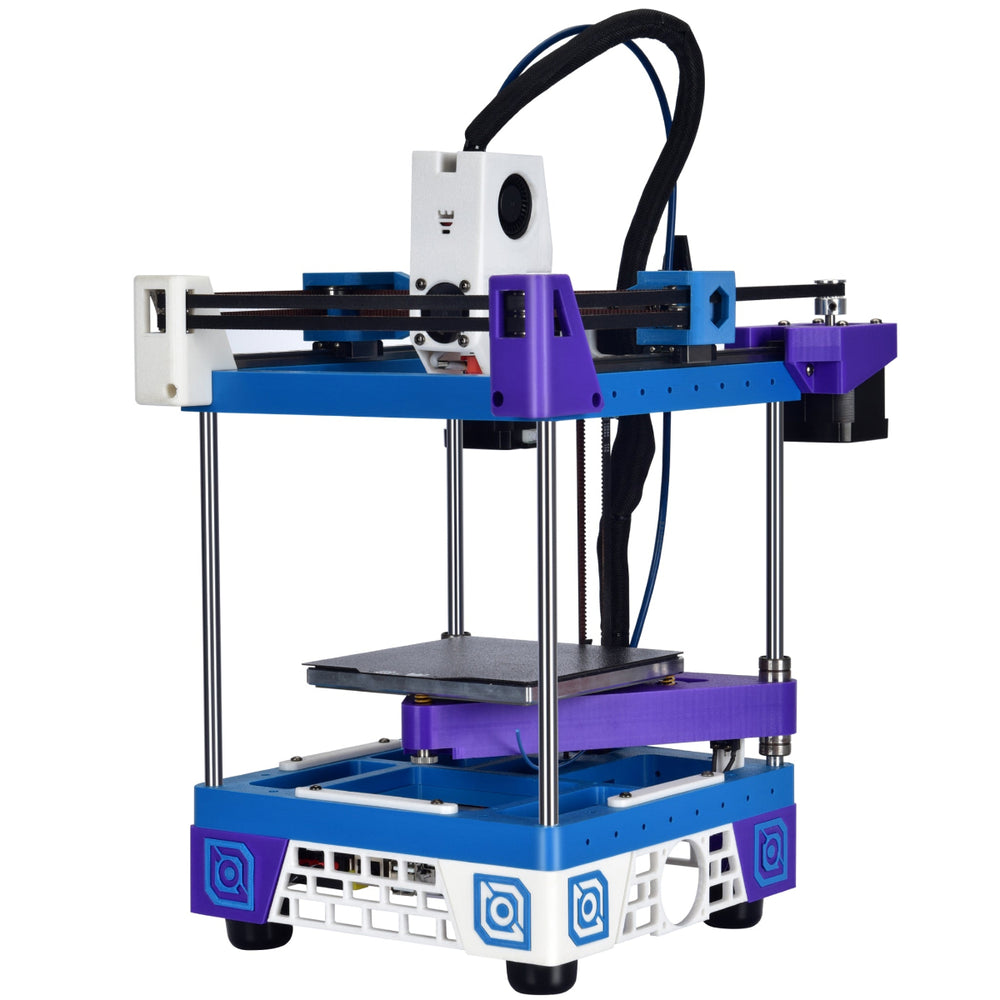

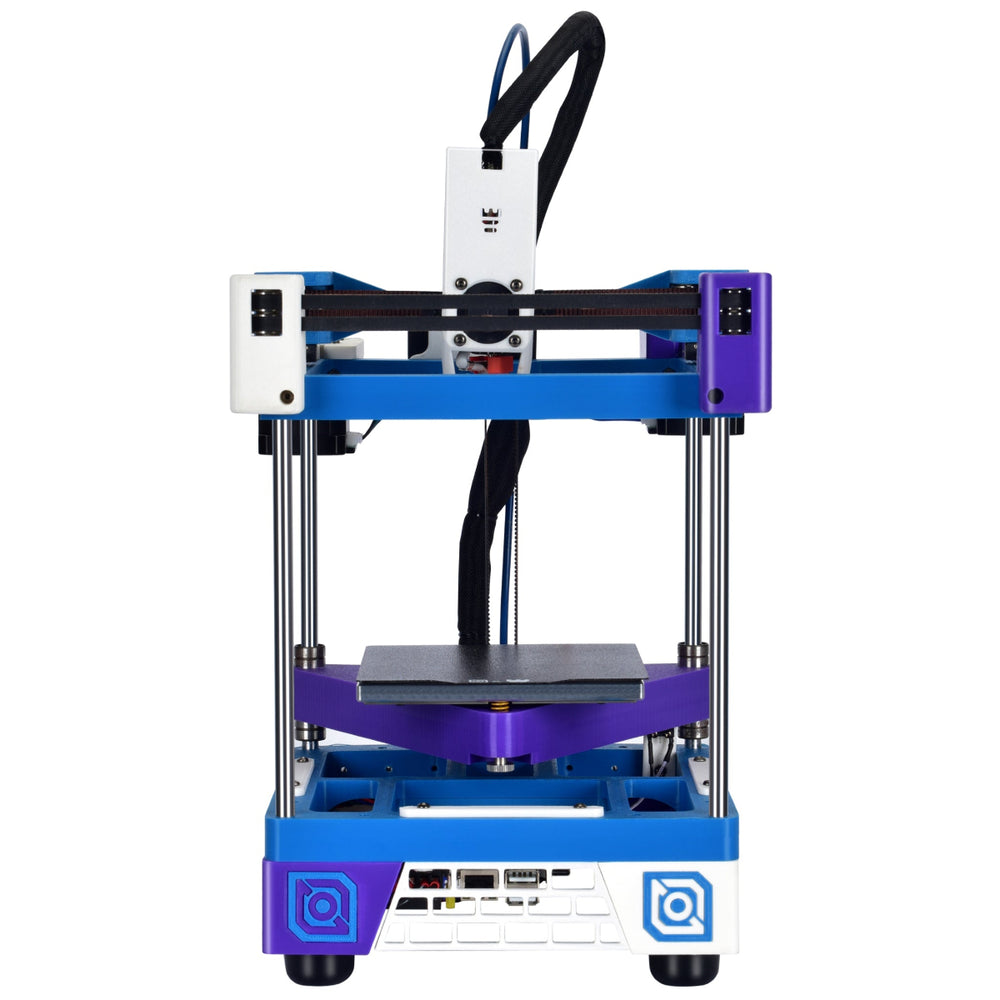

LDO ROOK MK1 - CoreXY 3D Printer Kit for Beginner

The core idea is “fewer detours + maximum playability”: single-motor belted Z, a triangular bed frame, a pre-drilled frame grid, and the Rookery toolhead ecosystem, so you can keep expanding the machine to match your needs.

Ideal for high-speed desktop small parts; learning Klipper tuning; a handy second printer; testing ducts and toolhead mods.

LDO Version Upgrades & Improvements

ROOK MK1 (with the LDO kit) offers structural, ecosystem, and component-selection advantages vs. typical builds: more stable, more precise, faster to build, and easier to assemble.

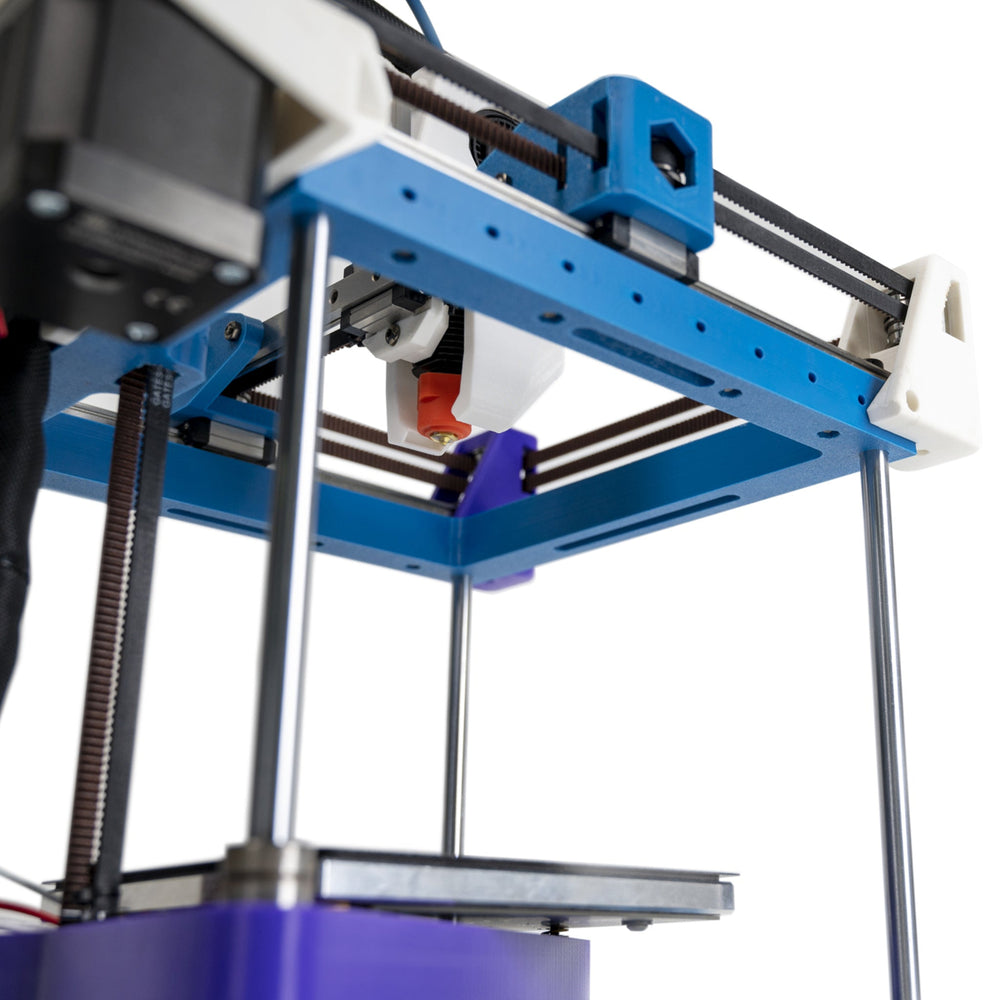

01. Belted Z

The Z axis uses belt-synchronized lifting, reducing complexity vs. multi-motor or lead-screw solutions. It moves more smoothly with a lighter structure and is easier to maintain.

02. Triangular Bed

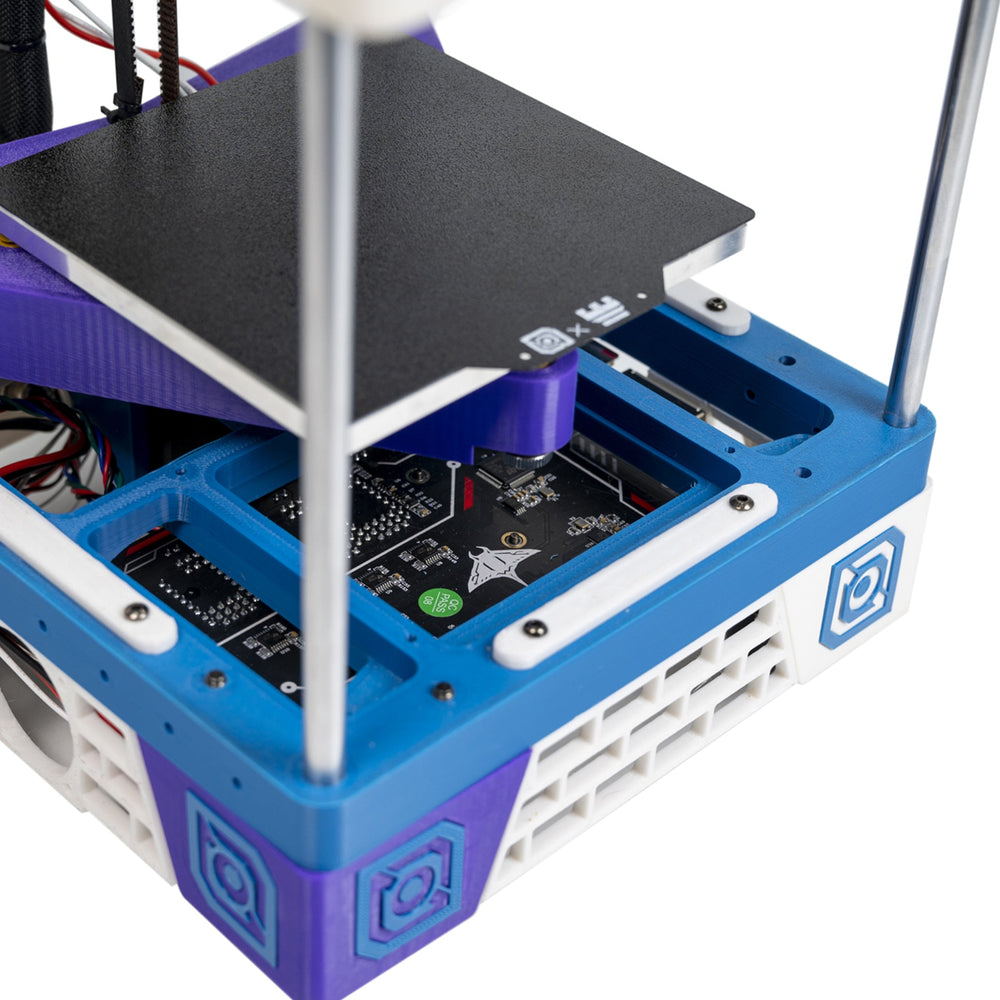

A triangular bed frame with rear bearing support improves leveling and support stability, and it can accommodate different bed-surface options such as glass, magnetic sheets, and heated beds.

03. Pre-drilled Frame Grid (25 mm Grid)

25 mm spaced mounting holes on the sides/top/bottom make expansion easier: panels, braces, cable routing, and peripherals can be mounted quickly.

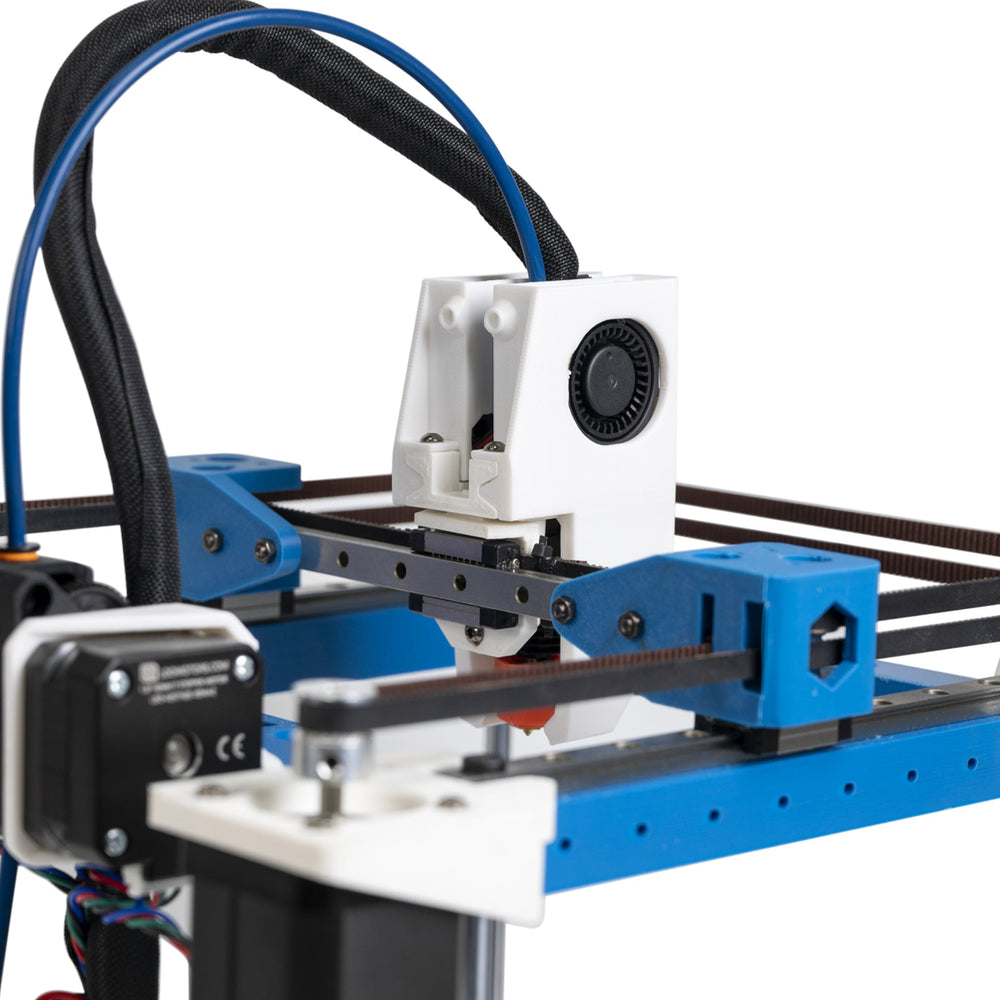

04. Rookery Toolhead

Rookery replaces traditional cooling structures with dual-fan direct mounting and a quick-removal installation method. It improves part cooling and bridging stability, and makes maintenance/modding easier.

05. Unified Kit Component Selection

The kit specifies the core hardware (e.g., BTT M4P + CB1 + TMC2209, Trianglelab TR6 CHC hotend, and a DDB dual-drive extruder). Key components are better matched, reducing compatibility pitfalls and speeding up the build.

Specs & What's Included

A. Specs

Standard Version (Max Print Volume: 110 × 110 × 110 mm)

Best Suited For:

l First CoreXY build; high-speed desktop small parts; Klipper learning and modding

l Footprint / weight: approx. 200 × 200 × 250 mm; approx. 4.5–7 kg (for reference)

Recommended User Level: First-time builders, users who want a small but highly mod-friendly machine, and a “second printer” use case.

B. Key Components

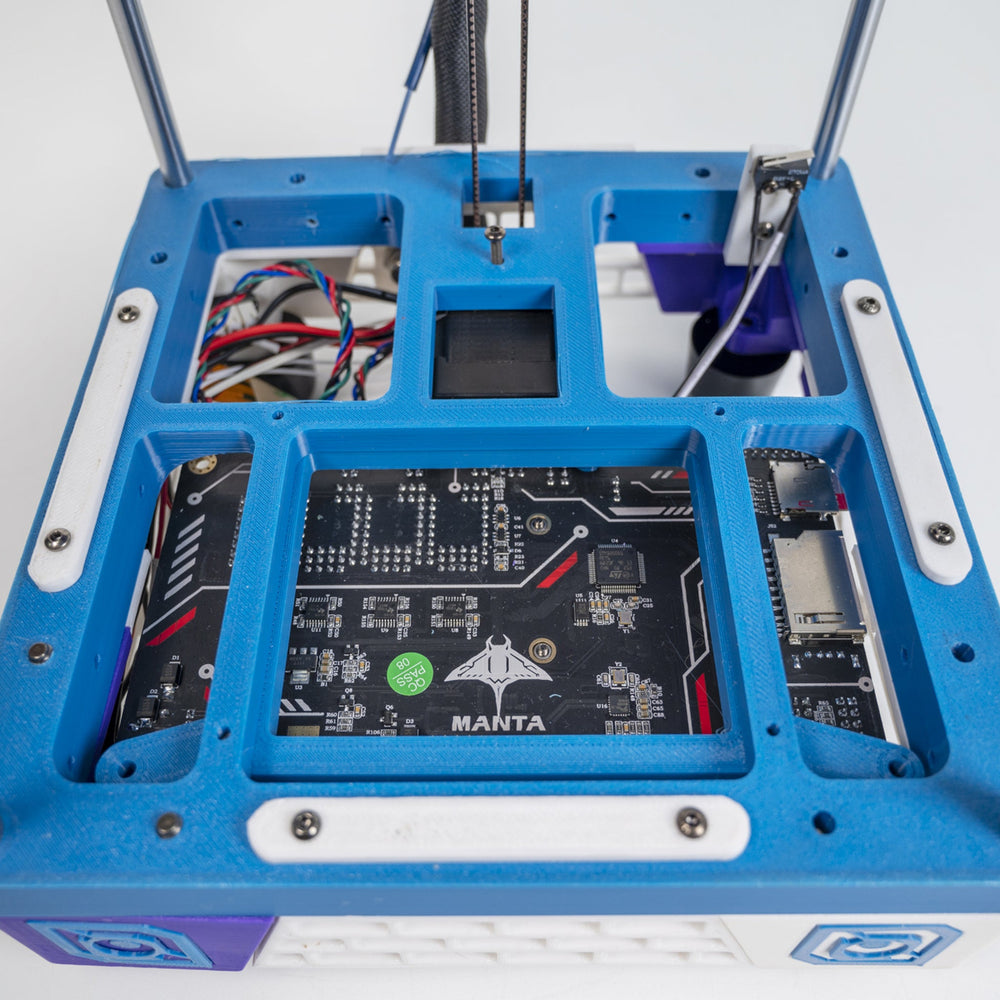

• l Controller: BTT M4P + CB1 + TMC2209 (included in the kit)
• l Firmware: Klipper (beginner-friendly, yet great for advanced tuning)
• l Motion: LDO SLR9C linear rails (200 mm ×2 + 150 mm ×1), GT2 6 mm belts (4 m)
• l Motors: LDO XY ×2, Z ×1, E ×1 (with pre-cut wiring harnesses)

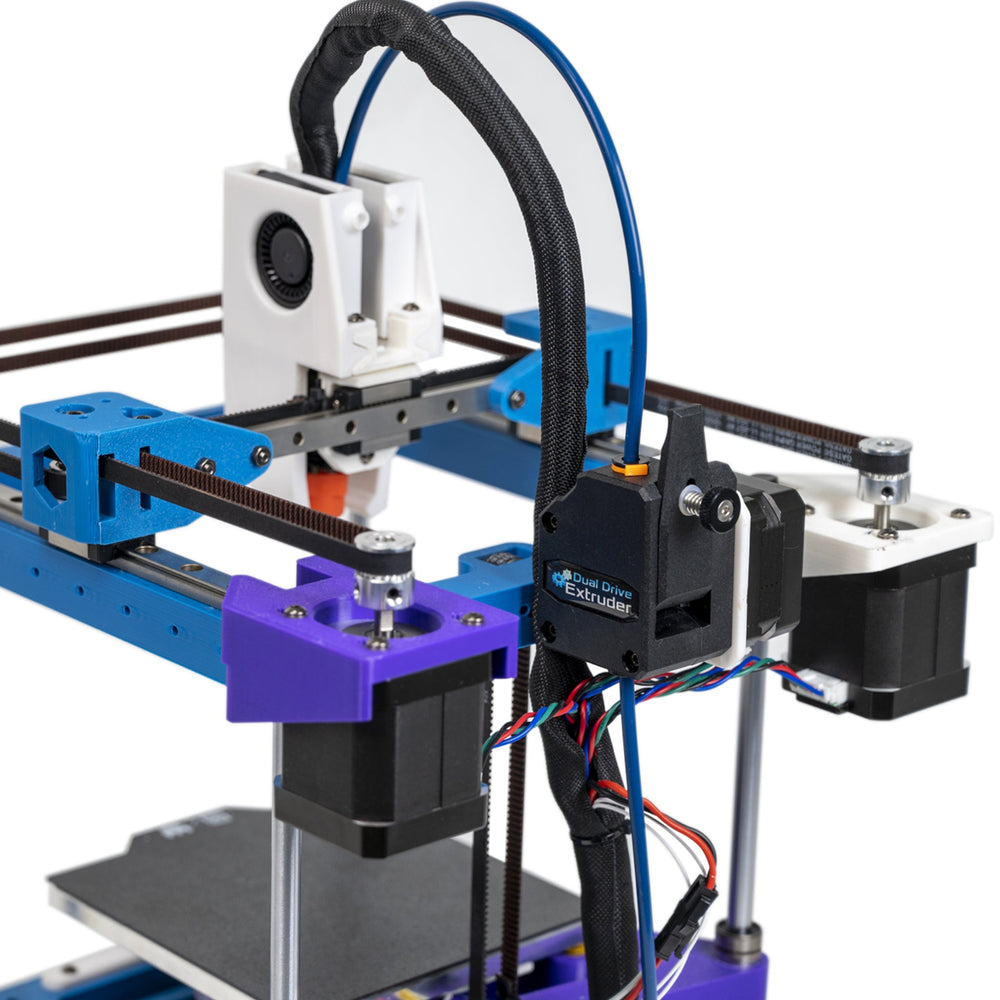

• l Extrusion: Trianglelab DDB Dual Drive Extruder
• l Hotend: Trianglelab TCHC TR6 CHC ceramic heater hotend (Model B)
• l Heated bed: 120 × 120 aluminum plate + 110 × 110 24 V 100 W heater pad + magnetic sheet + 125 × 125 PEI spring steel sheet
• l Cooling: 4010 blower ×2 + 3010 axial fan ×1
• l Sensors / endstops: Omron microswitch Z endstop, stud-type bed temperature sensor, etc.

Note: Kit contents may vary slightly by production batch or sales channel. Please verify against the checklist included with your shipment.

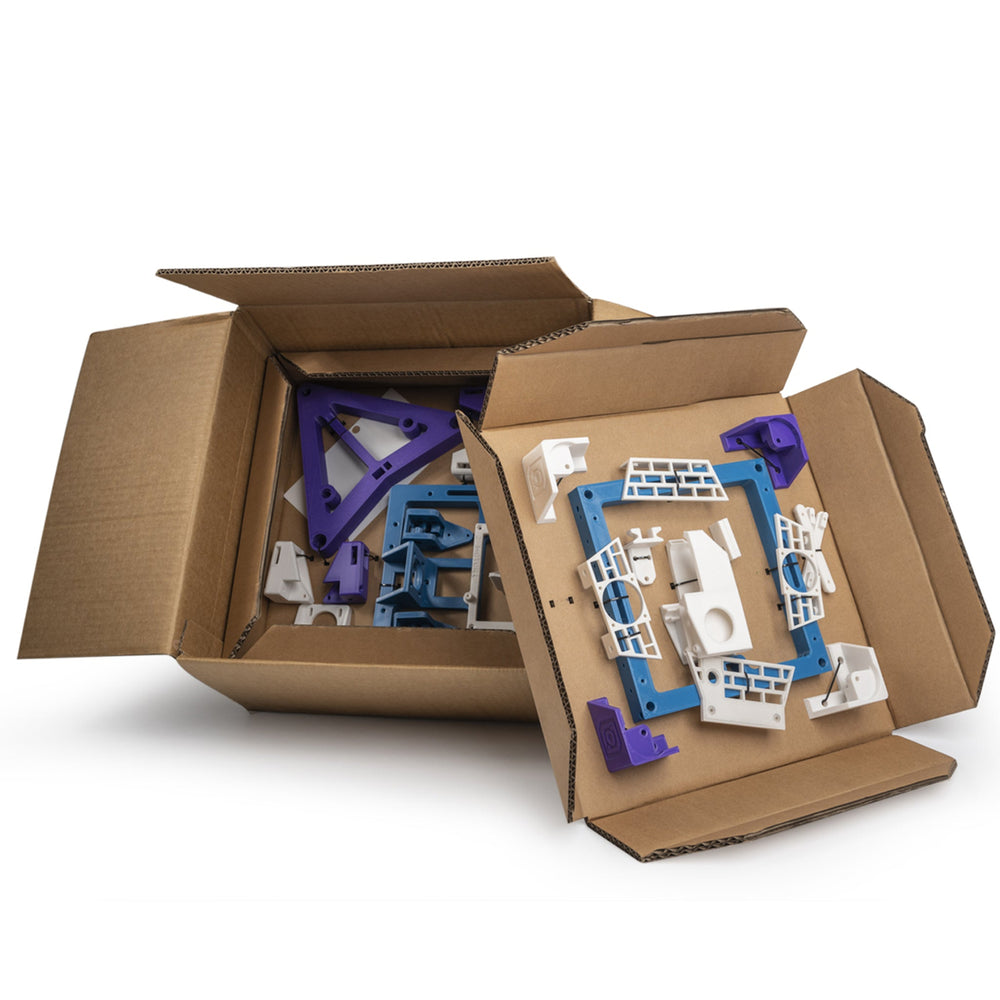

Printed Parts

This kit includes printed parts. By default, the printed parts are supplied in a blue-and-white color scheme and will be shipped together with the kit.

Reviews & Build Experience

See what third-party reviews and fellow builder say. Their firsthand insights on build difficulty, tuning process, and print quality can help you make an informed decision.

First Print: Baseline Validation

Complete your build with confidence. Run this initial print sequence to validate core machine functions: extrusion, temperature control, motion, and dimensional accuracy.

What You Will Need

Slicer: [OrcaSlicer]

Recommended test models: [Test_Prints]

Note:  Voron_Design_Cube_v7.stl is the most widely used.

One-stop Resource Center

Resource List

• LDO product page: [LDO Rook MK1]
• Recommended first-print models / slicer software: [Test_Prints ;OrcaSlicer]
