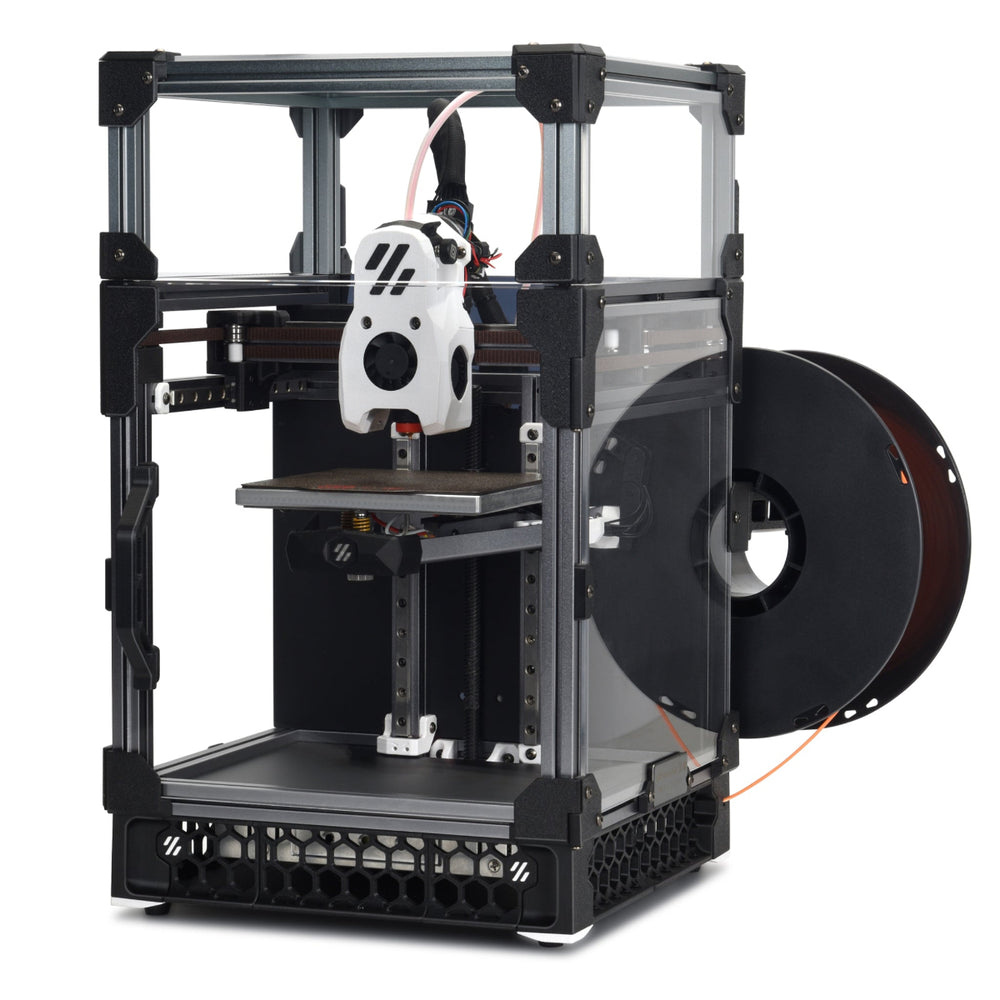

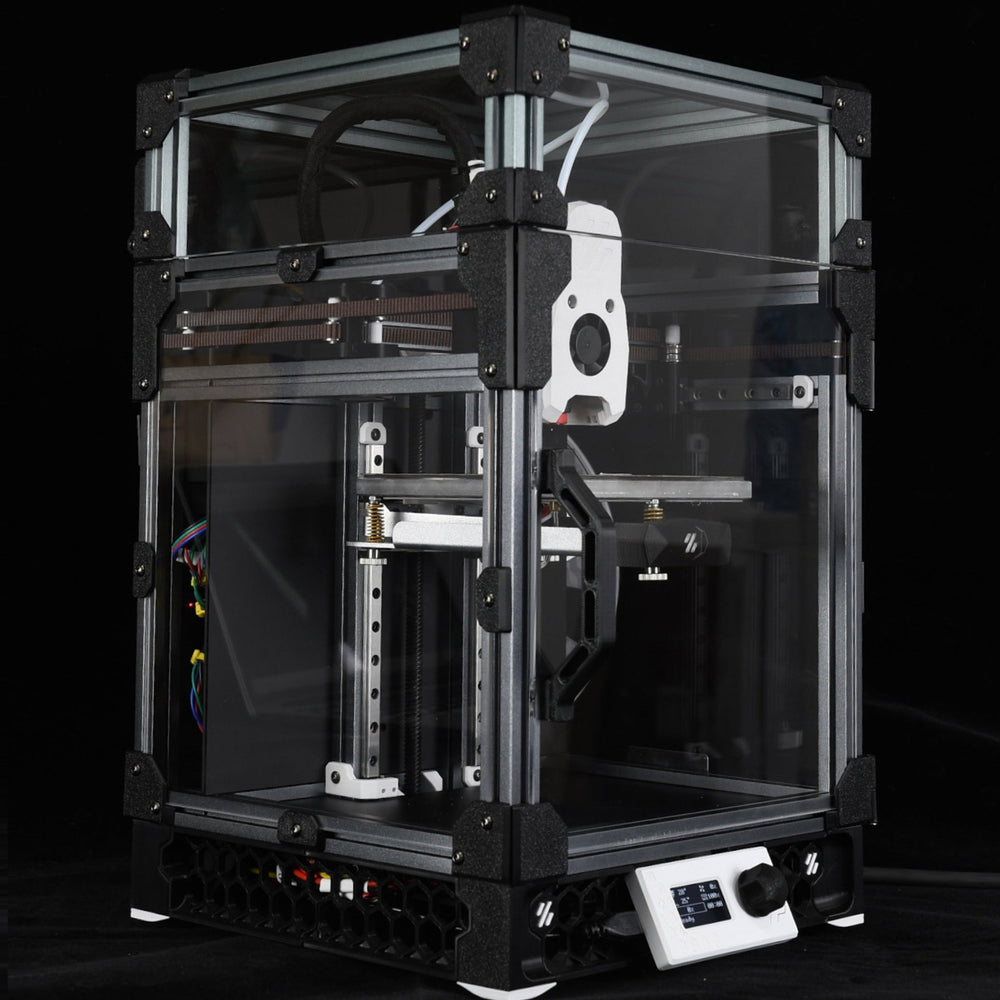

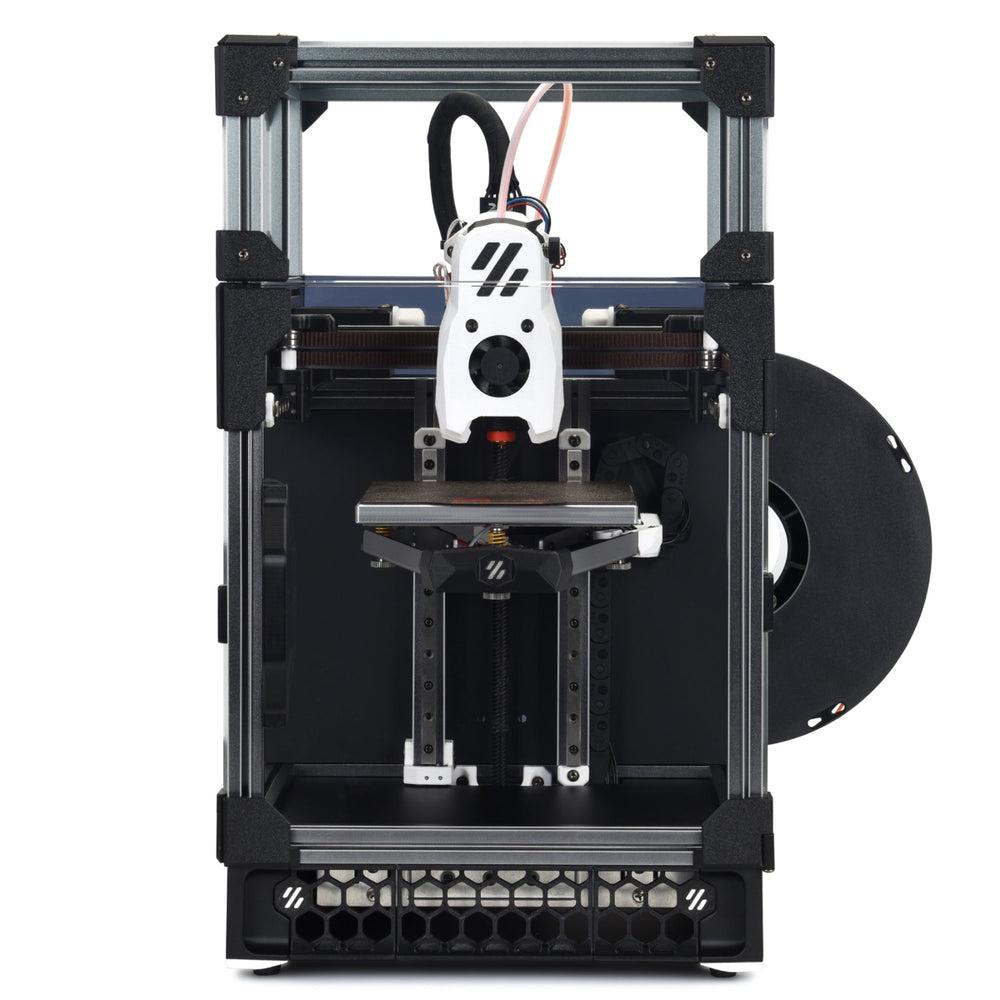

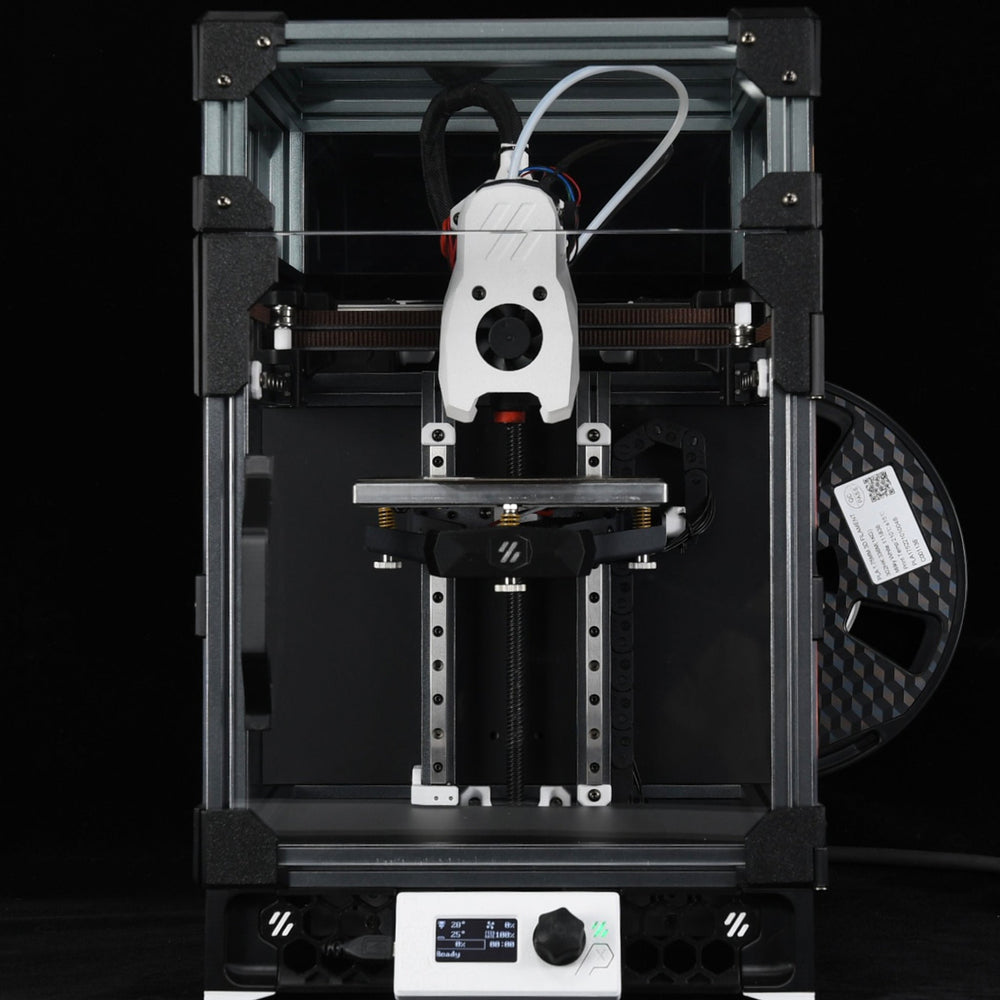

LDO Voron 0.2-S1 - Mini CoreXY 3D Printer Kit

Where it excels:

1. Speed & Quality: Achieve fast, high-detail prints for prototypes and final parts.
2. Engineering Materials: Reliably print ABS, ASA, PC, PA, and other technical filaments in a stable, enclosed environment.
3. Compact Workflow: Ideal for small-batch fixtures, functional components, and rapid iteration.
4. Future-Proof: Built on the open Voron ecosystem, it ensures long-term upgradability and freedom from platform lock-in.

LDO Version Upgrades & Improvements (Rev.A+ / R1)

LDO version—engineered for greater stability, precision, and ease of assembly compared to standard configurations.

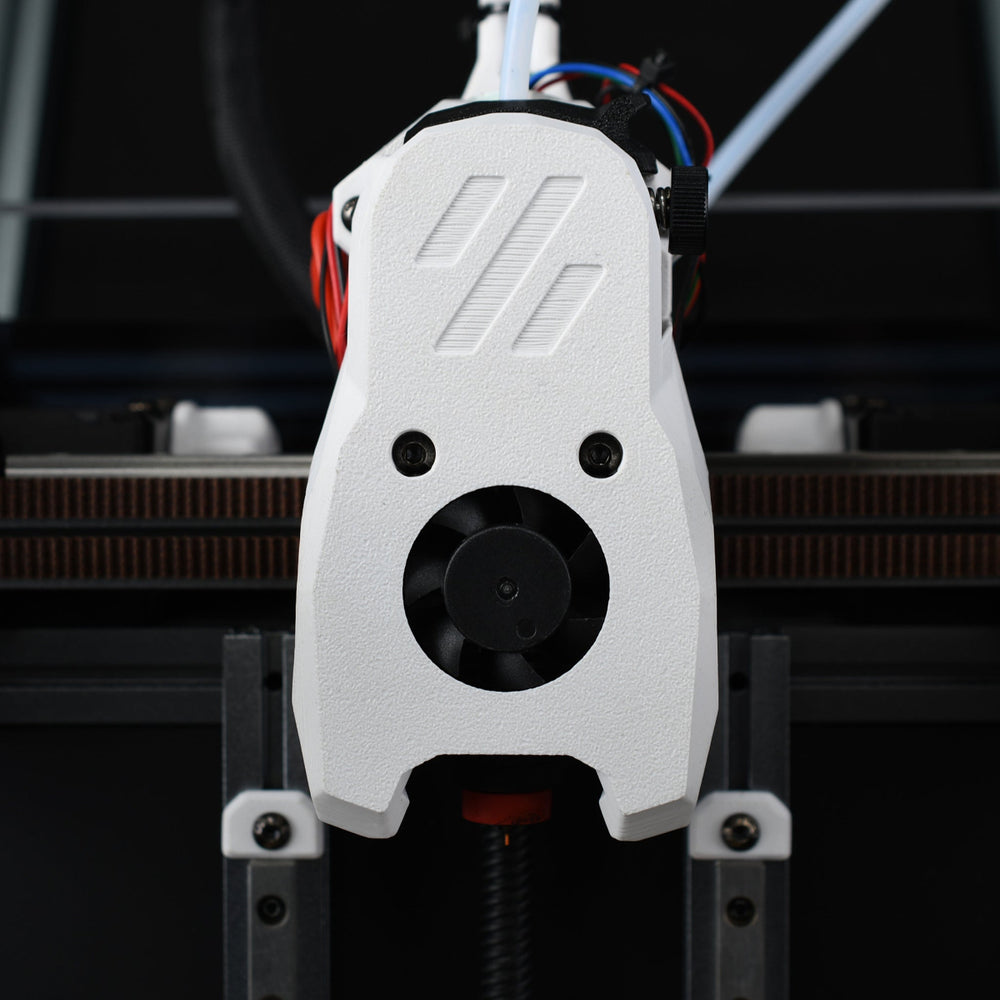

01. E3D Revo Voron  Hotend System

Upgrade: Standard inclusion of the E3D Revo Voron hotend.

Benefit: Simplifies maintenance, enables rapid nozzle swaps, and provides robust support for high-temperature engineering materials.

02. Picobilical PCB

Upgrade: Integrated Picobilical PCB solution.

Benefit: Delivers cleaner toolhead wiring, facilitates easier servicing, and contributes to a more polished final build.

03. Kirigami Bed Mount (Bent-bed Mount)

Upgrade: Proprietary Kirigami (bent-bed) structure.

Benefit: Creates a clearer and more organized bed area, streamlining both assembly and future maintenance.

04. Slide-in M3 Nuts

Upgrade: Strategic use of slide-in nuts in key locations.

Benefit: Accelerates assembly, minimizes rework, and simplifies future adjustments or upgrades.

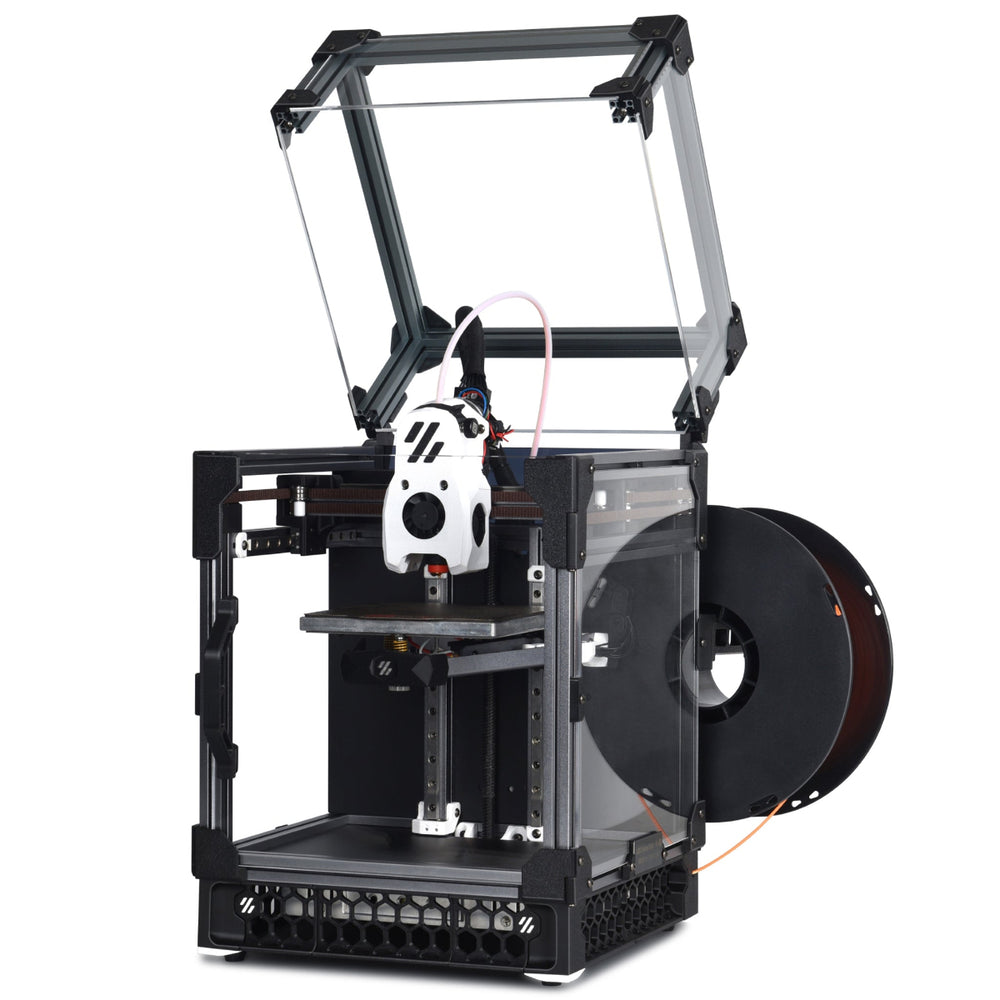

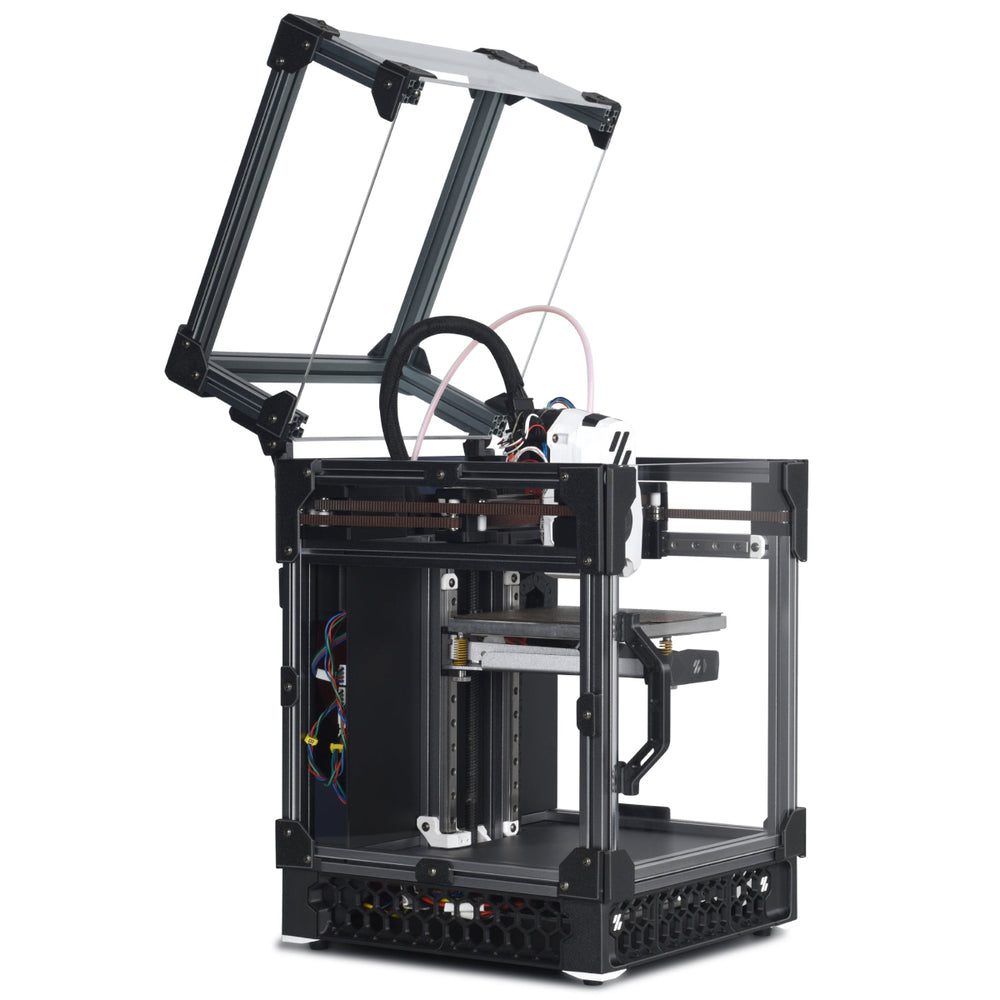

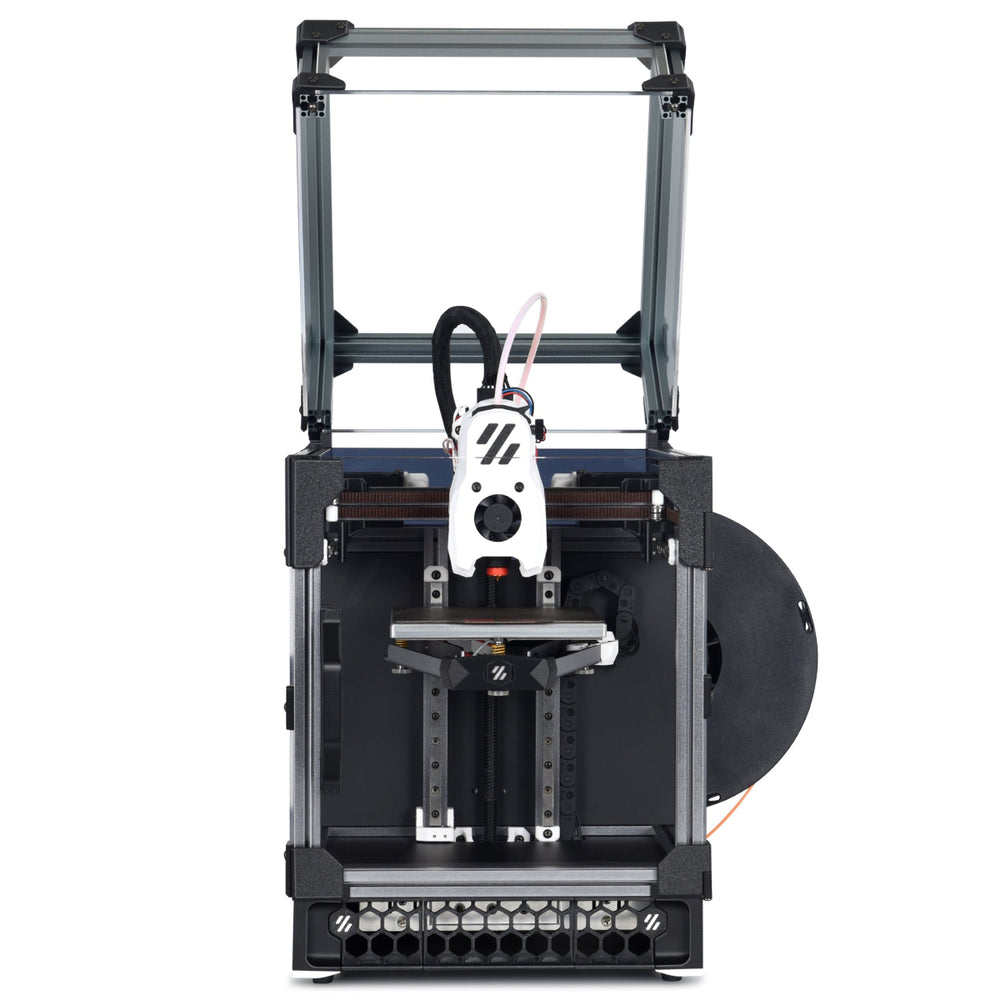

05. V0.2 TopHat (Hinges + Latch)

Upgrade: Enhanced TopHat featuring integrated hinges and a secure latch.

Benefit: Offers effortless access for frequent tuning, maintenance, and upgrade tasks.

06. Pre-cut Wiring Harness + Wiring Guide

Upgrade: Custom pre-cut wiring harness paired with a detailed step-by-step guide.

Benefit: Ensures a tidy, controlled electronics build and significantly reduces wiring errors.

Specs & What’s Included(BOM)

A. Key Components

· Mainboard: BTT SKR Pico (a common Klipper-ready option).

· Hotend: E3D Revo Voron system.

· Heated bed: 120 × 120 aluminum bed + magnetic base + PEI spring steel sheet .

· Enclosure: enclosure panels + TopHat structure.

· Wiring: Picobilical PCB + harness support.

· Power system: 24V platform.

B. Full BOM

· LDO Official BOM : [V0.2-S1 BOM (Rev.A+)]

Note: Kit contents may vary slightly by production batch or sales channel. Please verify against the checklist included with your shipment.

Printed Parts Options (Self-print / Pre-printed Service)

Choose the method that best fits your tools, time, and preferences.

Option A: Print It Yourself (Recommended for Printer Owners)

• Proven Material Performance: We strongly recommend printing in ABS or ASA. These materials offer the necessary heat resistance and strength for a high-performance enclosed printer.
• More predictable assembly: Printing your own parts allows you to fine-tune dimensional accuracy and account for material shrinkage before final assembly, leading to a more precise and predictable build outcome.
• Get Started: [LDO V0.2 Rev. A+ Printed Parts Guide]

Option B: Order Pre-printed Parts  (For No Printer / Time-Sensitive Builds)

• Build Immediately: No 3D printer? No problem. Start your project as soon as the kit arrives.
• Simple Add-On: Select the “Pre-Printed Parts Service” during checkout. Parts will be carefully packed and shipped together with your main kit.
• Color Options: Standard two-tone (Primary + Secondary).【For custom color requests】, please contact support or add a note to your order.
• Lead time: Made-to-order; typically ships ~4 business days later (adjust per production capacity).

Reviews & Build Experience

See what third-party reviews and fellow builder say. Their firsthand insights on build difficulty, tuning process, and print quality can help you make an informed decision.

Build Notes

Our detailed Build Notes supplement the official manual, integrating key LDO-specific instructions and community wisdom to ensure a smooth and efficient build.

• Follow with Confidence: The Notes clearly highlight which official steps to skip, modify, or pay extra attention to, eliminating guesswork.
• Avoid Common Pitfalls:  Critical reminders and kit-specific differences are consolidated in one place, helping you maintain a steady build rhythm and avoid rework.
• Simplified Workflow: Particularly for beginners, the electronics and wiring sequences are clarified for a more straightforward and less frustrating experience.

LDO Build Notes：[LDO V0.2 r1 Kit Build Notes]

LDO Wiring Guide：[LDO V0.2-S1 Kit Wiring Guide]

First Print: System Validation

Complete your build with confidence. Run this initial print sequence to validate core machine functions: extrusion, temperature control, motion, and dimensional accuracy.

What You Will Need

Slicer: [OrcaSlicer]

Recommended test models: [Test_Prints]

Note:  Voron_Design_Cube_v7.stl is the most widely used.

One-stop Resource Center

Resource List

• LDO Official BOM / Checklist: [V0.2-S1 BOM (Rev.A+)]
• Printed parts files:[LDO V0.2 Rev. A+ Printed Parts Guide]
• Wiring Guide: [LDO V0.2-S1 Kit Wiring Guide]
• Build Notes: [LDO V0.2 r1 Kit Build Notes]
• First-print models / slicer profiles: [Test_Prints] ;[OrcaSlicer]
